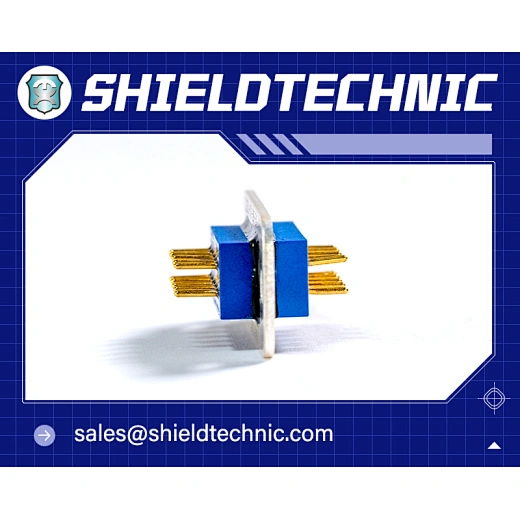

Array Filter

Quantity:

Contact Now

add to cart

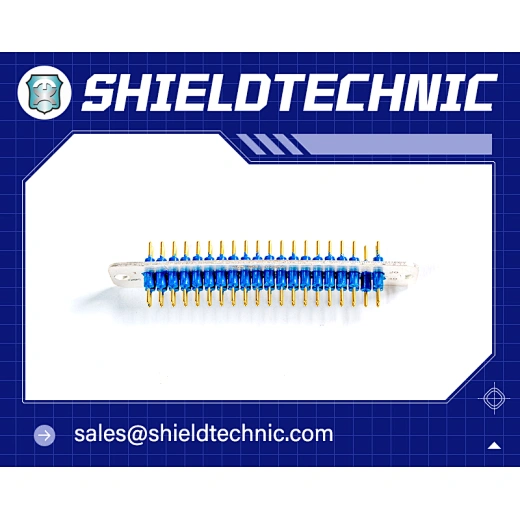

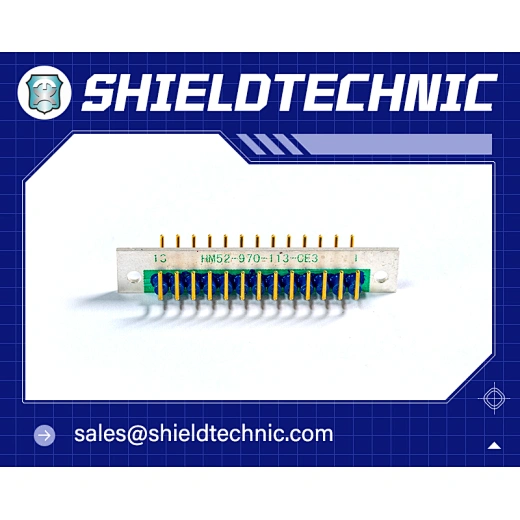

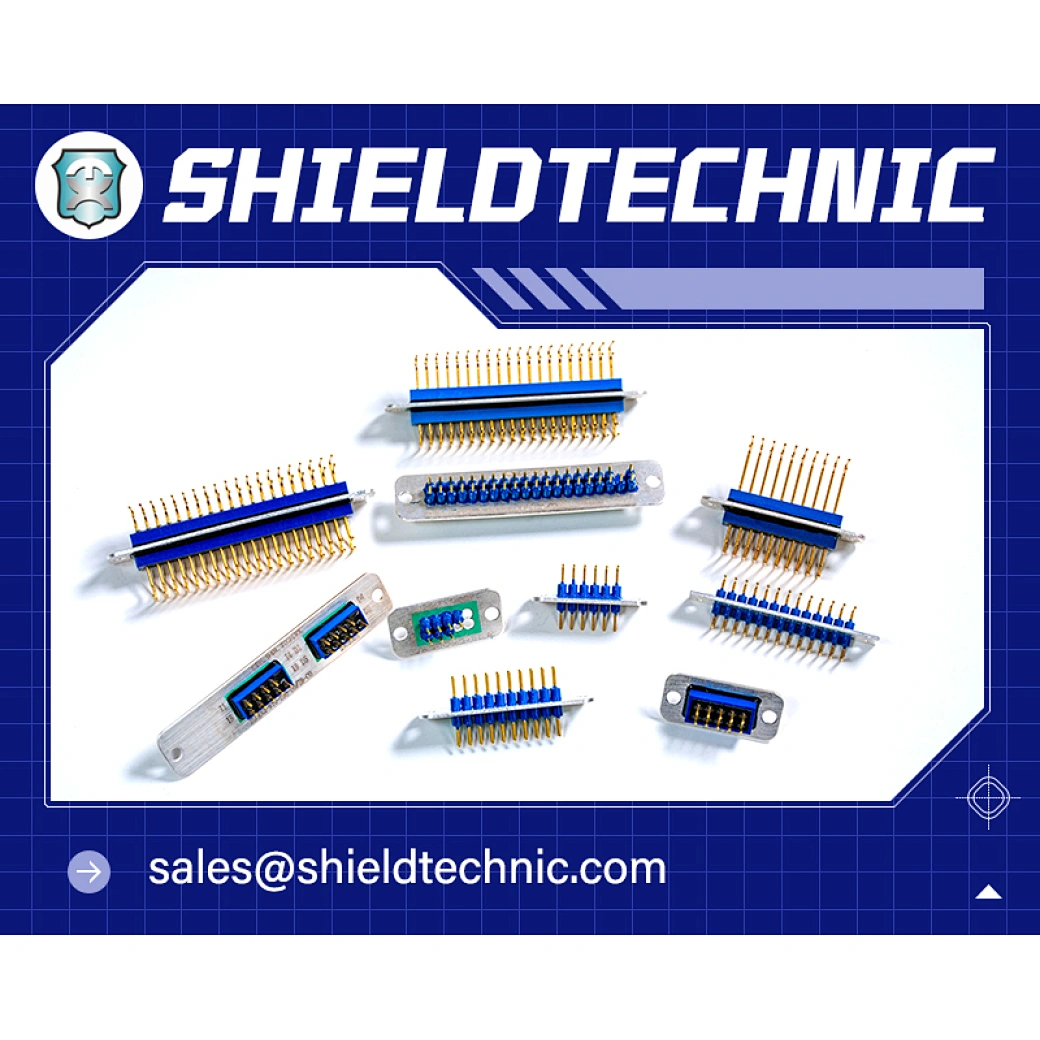

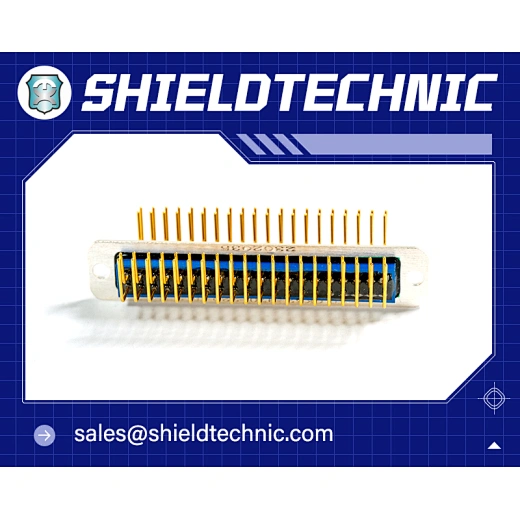

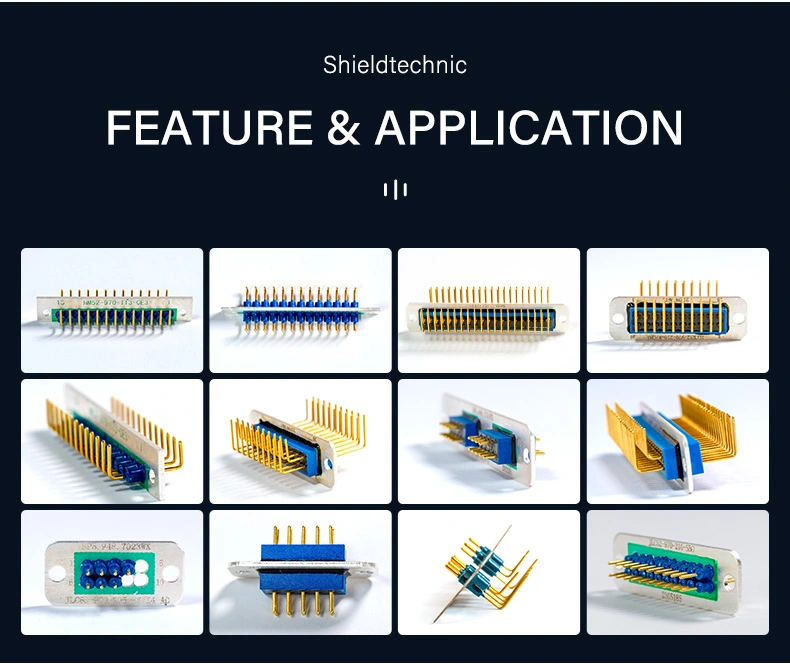

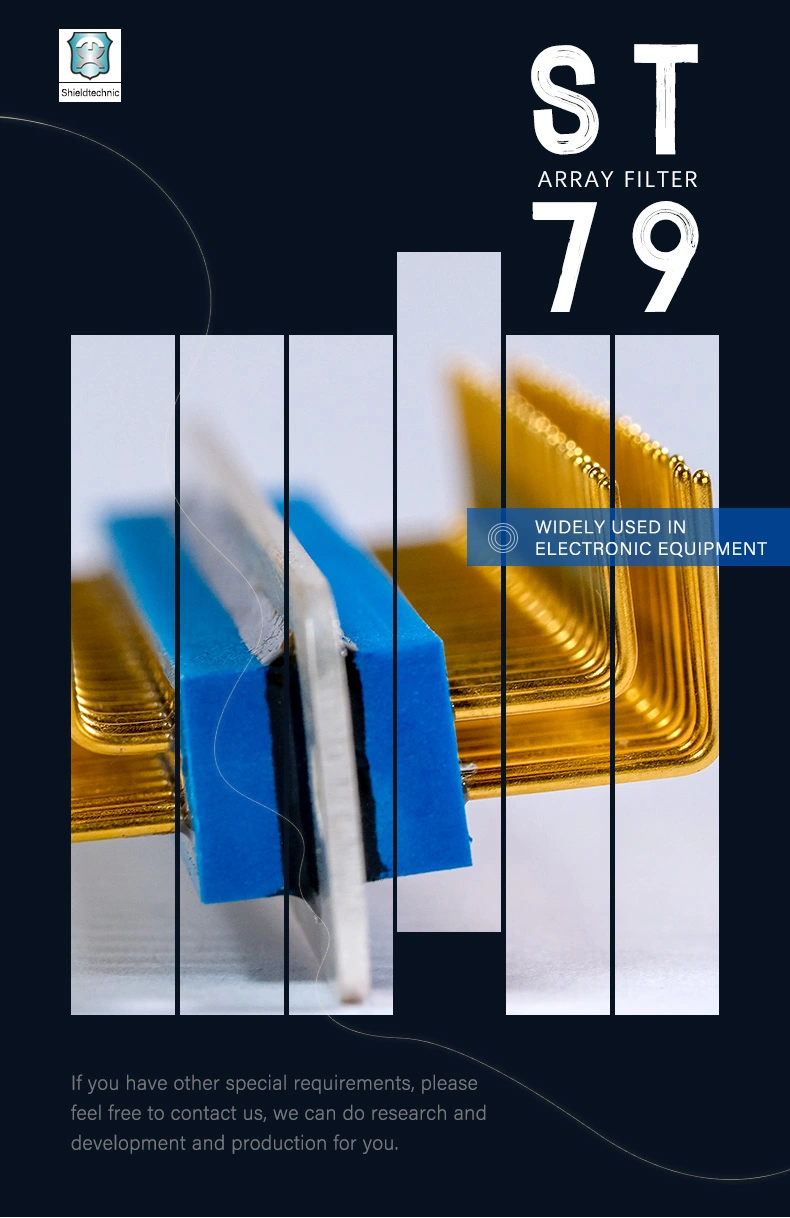

1.The array filters are arranged at a standard spacing (2.54mm)，There are two arrangement modes of single row and double row, the number of the pins can range from 1 to 60., can be widely used in electronic equipment.
2.Excellent filtering performance in 5MHz-1GHz frequency band.
3.Small size, light weight, high integration, satisfy the requirements of modern highly integration.
4.Each pin can have different electrical parameters, so when there are different filtering requirements for each data signal in the multi-channel data signal, the simultaneous filtering of the multi-channel data signal can also be realized.

Earth Plate Material	Copper Alloy	Leading Wire Diameter	Φ0.64mm
Earth Plate cladding	sliver plating	Array Pitch	2.54mm

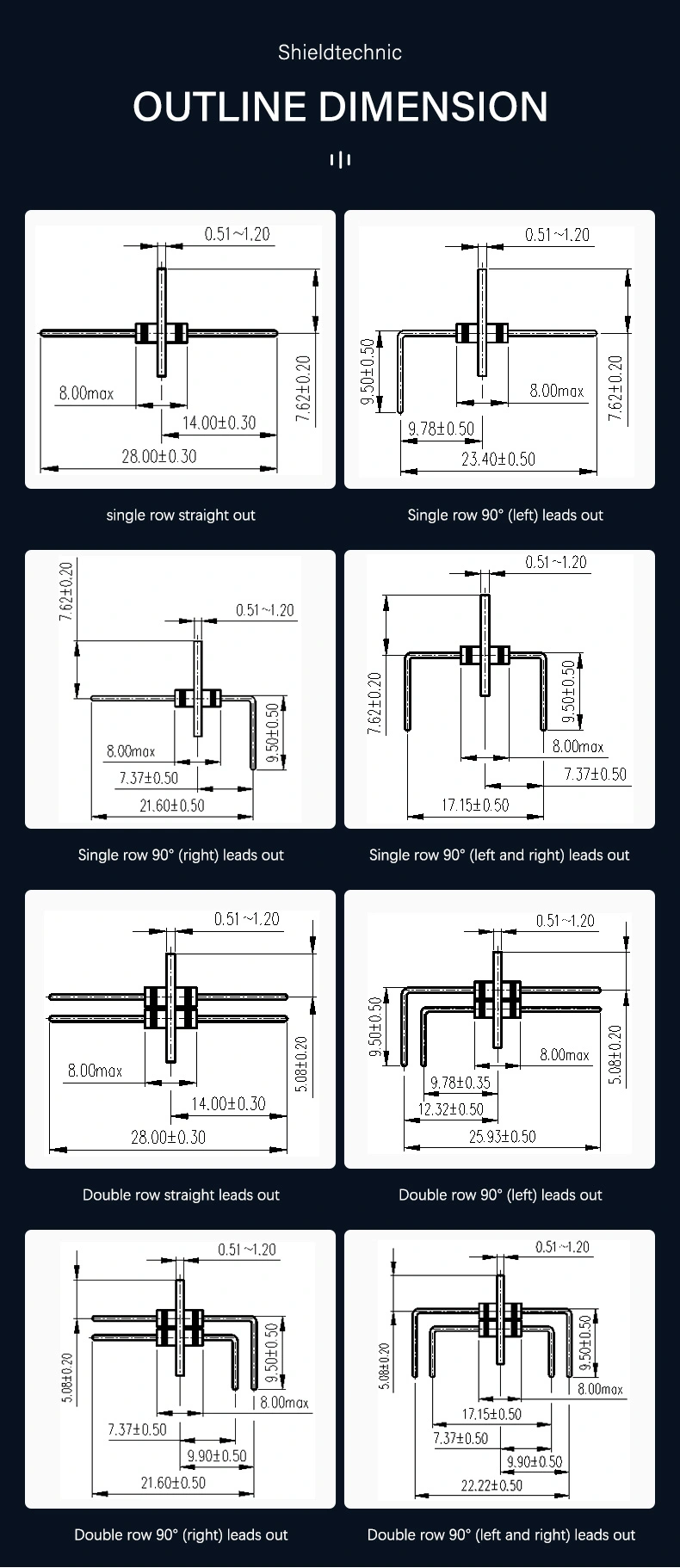

Leading Wire	Copper Alloy	Outlet Type	straight, 90° (left)、90°(right)、90°（left and right）
Leading Wire Cladding	gold plating	Rated Current	3A

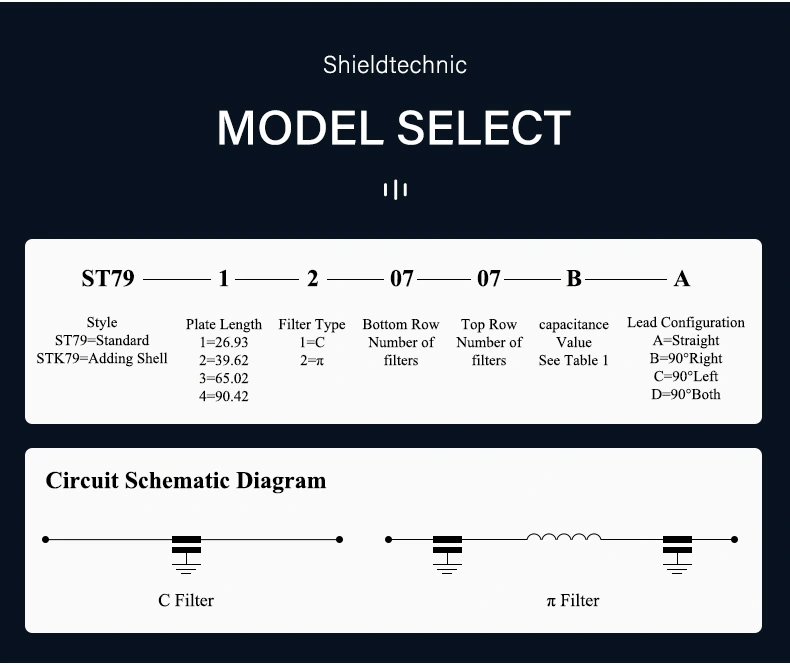

Circle	Frequency band symbol	Capacitance（pF）	Capacitance tolerance (%)	Rated Voltage (VDC)	Rated Current(A)	Dielectric withstand voltage (VDC)	Insulation resistance (MΩ)	Minimum insertion loss(dB)
Circle	Frequency band symbol	Capacitance（pF）	Capacitance tolerance (%)	Rated Voltage (VDC)	Rated Current(A)	Dielectric withstand voltage (VDC)	Insulation resistance (MΩ)	5 MHz	10 MHz	20 MHz	50 MHz	100 MHz	200 MHz	500 MHz	1GHz
C	A	68	±20	100	3A	250	≥2000						3	10	16
	B	100	±20	100	3A	250	≥2000					1	6	14	19
	C	135	0～100%	100	3A	250	≥2000				1	5	10	16	20
	D	470	±20	100	3A	250	≥2000			2	7	13	19	25	27
	E	820	±20	100	3A	250	≥2000		2	6	12	18	24	30	33
	F	1000	±20	100	3A	250	≥2000		3	7	14	20	26	32	35
	G	1500	±20	100	3A	250	≥2000	1	4	10	16	22	29	36	37
	H	2500	0～100%	100	3A	250	≥2000	5	11	17	23	29	35	38	40
	I	4000	0～100%	100	3A	250	≥2000	9	15	21	27	34	38	42	46
π	L	68	±20	100	3A	250	≥2000					1	6	17	23
	M	10	±20	100	3A	250	≥2000					2	9	22	28
	N	135	0～100%	100	3A	250	≥2000				1	6	17	26	34
	O	470	±20	100	3A	250	≥2000				9	18	22	36	43
	P	820	±20	100	3A	250	≥2000			4	13	23	31	45	52
	Q	1000	±20	100	3A	250	≥2000		2	7	16	24	36	51	59
	R	1700	0～100%	100	3A	250	≥2000	1	6	14	28	35	49	64	69
	S	2500	0～100%	100	3A	250	≥2000	4	9	16	28	41	54	70	70
	T	5000	0～100%	100	3A	250	≥2000	9	15	28	41	53	66	70	70
	W	10000	0～100%	100	3A	250	≥2000	10	22	30	45	55	68	70	70

Remark

1.The rated voltage of the array filter is 100VDC, and the rated current is 3A. Users should pay attention not to higher than the rated voltage and rated current when selecting the filter. If you have other special requirements, please feel free to contact us, we can do research and development and production for you.
2.When the array filter is installed, special attention should be paid to the lead cannot be bent, stretched, collided, cut, etc., which may damage the porcelain tube capacitor and affect the electrical performance of the filter.
3.The array filter can be welded to connect the circuit, but pay attention to the welding temperature and time. The maximum temperature shall not exceed 280℃, and the maximum temperature shall not exceed 3S.
