High Density High Voltage Pulse Energy Storage Capacitor

LGGF3887

Energy Storage Capacitor
High Voltage Capacitor
Power Capacitor
Pulse capacitor
Power capacitor
High Density Capacitor
Polypropylene Film Capacitor
Polypropylene Capacitor
Film Capacitor
High Capacitance Capacitor
Organic Film Capacitor

Quantity:

Contact Now

add to cart

1.High specific energy density, excellent electrical properties.
the energy storage density can up to 3.0J/cc.
2.Applying imported and domestic metallized film.
3.Metallic, non-metallic package, non-inductive winding.
4.Reliable performance and good self-healing property.
5.Huge capacitance.
6.Dry-sealed structure, excellent moisture resistance, safe and reliable.
7.Remark: the installation, capacitance, service life, energy density, dimensions are customizable.

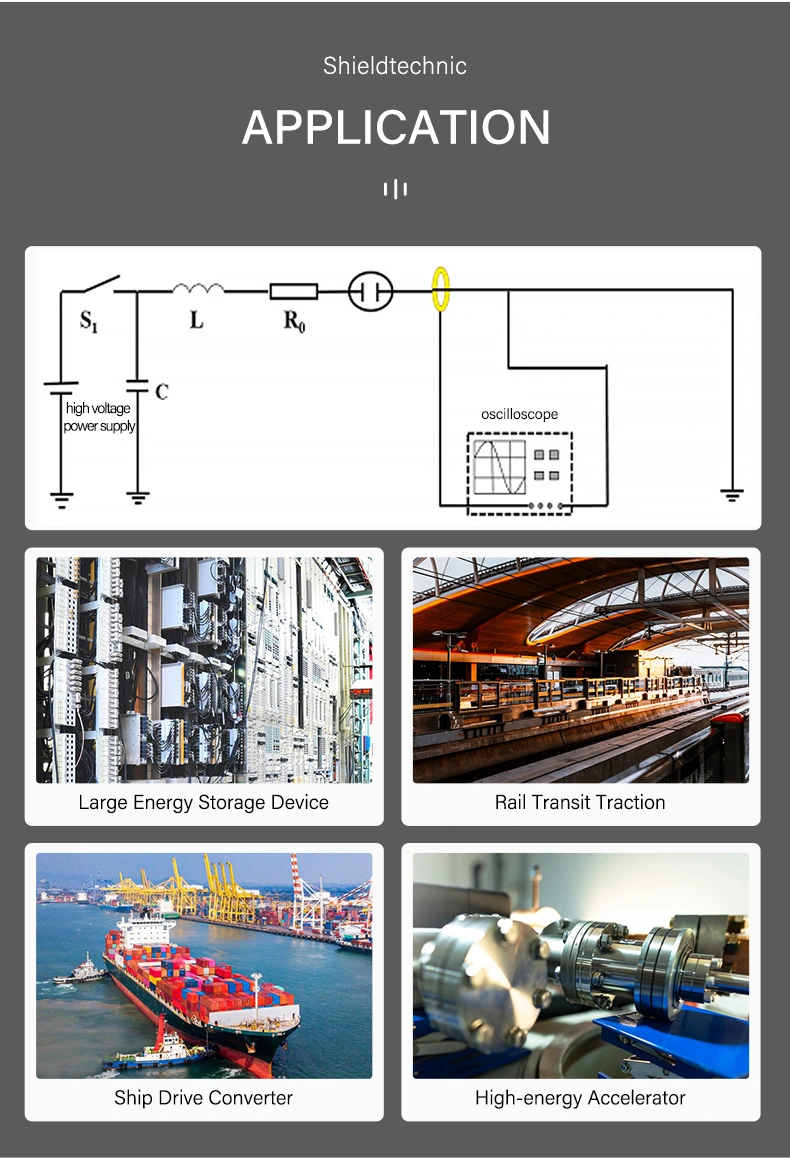

1.Used for pulse energy storage power system of large energy storage device
2.High power pulse power supply, high laser and high beam energy storage energy system
3.Rail transit traction or ship drive converter
4.Equipment on extreme conditions. strong magnetic field, high-energy accelerator

Capacitance（CN）	1000μF~16000μF	Test Voltage terminal to terminal	1.0 UR ~1.1 UR
Capacitance Tolerance	0~+5%	Test Voltage terminal to case	1.1 UR ~1.2 UR
Rated Voltage（UR）	3.5kVDC~35kVDC	Reference Standard	JB/T 8168-1999
Operating Temperature	-20℃~+55℃	Shell	Stainless steel, Aluminum shell, Insulated enclosure
Terminal	Bolt and nut	Encapsulation	Dry-sealed structure, epoxy sealing
Max Altitude	2000m	Flame Resistance	UL94V-0
Remark: The influence of the altitude on the convection cooling and external insulation should be considered if the altitude is above 2000m.

Item	Un(kV)	Cs(μF)	Ic(kA)	Reverse Voltage(%)	Life (△C/C≤5%)	Energy Density(J/cc)	Dimensions(mm)
1	3.5	42450	100	10	3000	2.2	319×400×931
2	4	2000	20	20	30000	0.8	330×100×600
3	5	1000	25	10	50000	0.6	290×160×448
4	5	2000	6.5	10	5000	2.5	290×86×400
5	6	1200	35	40	20000	1	290×160×465
6	6.5	16000	100	10	3000	2.5	504×388×691
7	7	1100	30	40	12000	1.2	290×160×480
8	8	1000	8	10	10000	1.6	279×157×455
9	9	1000	6.5	10	8000	2	279×157×455
10	10	1000	6.5	10	5000	2.5	279×157×455
11	10	1000	6.5	10	5000	2.5	290×172×400
12	10	2000	130	10	3000	2.38	470×330×270
13	10	4400	110	10	3000	2.4	516×322×550
14	15	500	20	10	8000	1.4	280×320×448
15	25	330	10	10	6000	1.7	450×280×478
16	30	220	30	10	50000	0.6	580×330×860
17	35	254	35	10	40000	0.8	740×385×680
Remark: All parameters can be customized
