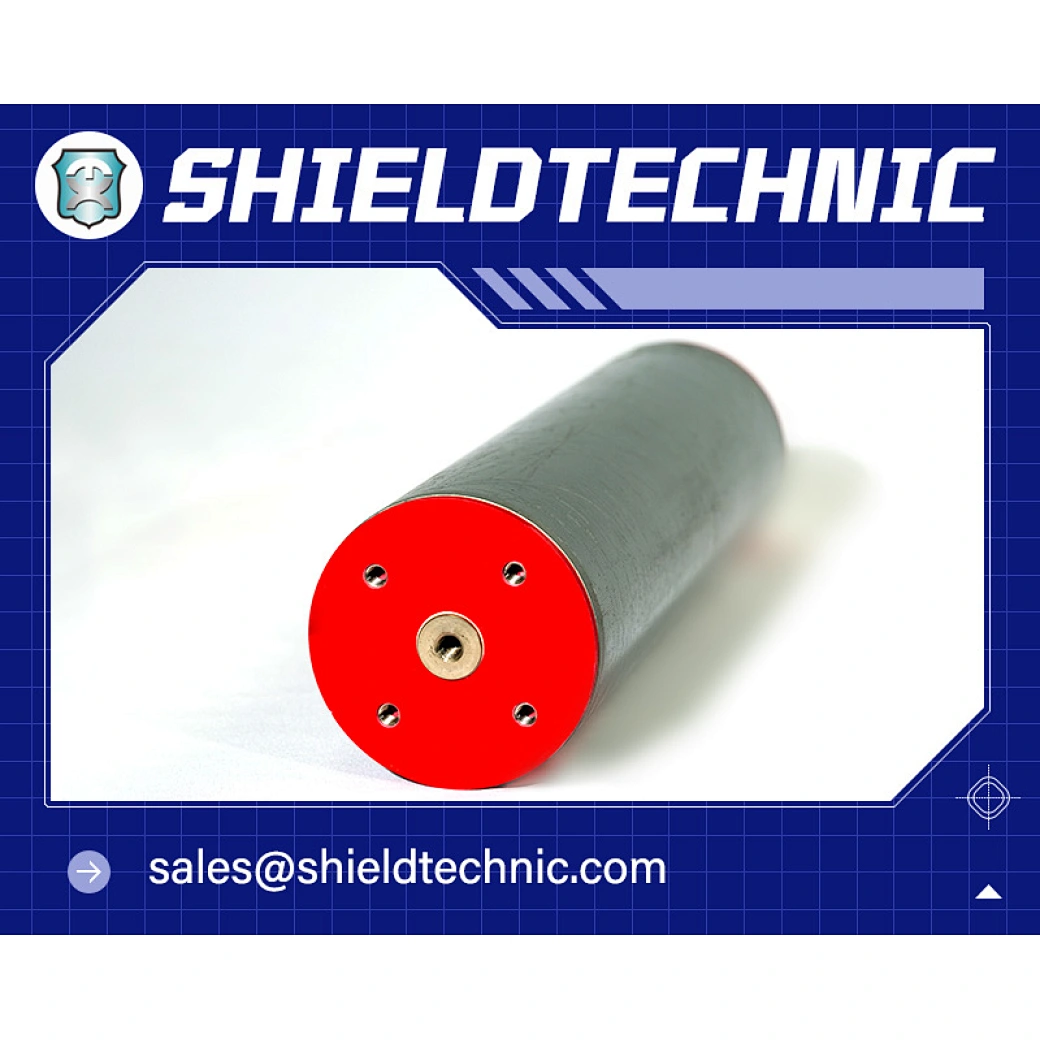

High Power High Density Pulse Capacitor

LGGF3828

Polypropylene Film Capacitor
High Density Capacitor
High power capacitor
High power pulse capacitor
High density pulse capacitor
High Voltage Capacitor
Power Capacitor
Pulse Capacitor
High Efficiency Capacitor
Pulse capacitor
Polypropylene Film Capacitor
Polypropylene Capacitor
Film Capacitor
Organic Film Capacitor
Dry Sealed Structure Power Capacitor
Capacitor for High Voltage Generator
Capacitor for High Pulse Power Supply

Quantity:

Contact Now

add to cart

1.Capacitance range 0.01μF~3μF, discharge current: 10kA~100kA, the voltage can up to 120kV.
2.Use imported or domestic metallized film.
3.Dry-sealed structure, excellent moisture resistance, safe and reliable.
4.Reliable performance and good self-healing property.
5.High pulse charge and discharge current, long service life time.
6.Remark: the installation, capacitance, service life, energy density, dimensions are customizable.

1.Used for pulse energy storage power system of high power device，such as Pulse discharge crusher, oil drilling, Wing tail deicing.
2.High voltage impact generator.
3.Equipment with high efficiency intense current, short-duration pulse, transient physical process device.
4.Equipment on extreme conditions. strong magnetic field, high-energy accelerator.

Capacitance（CN）	0.01μF~3μF	Test Voltage terminal to terminal	1.2 UR ~1.3 UR
Capacitance Tolerance	0~+5%	Test Voltage terminal to case	1.2 UR ~1.3 UR
Rated Voltage（UR）	10kVDC~100kVDC	Reference Standard	JB/T 8168-1999
Operating Temperature	-20℃~+55℃	Shell	Insulated enclosure
Terminal	Bolt and nut	Encapsulation	Dry-sealed structure, epoxy sealing
Max Altitude	2000m	Flame Resistance	UL94V-0
Remark: The influence of the altitude on the convection cooling and external insulation should be considered if the altitude is above 2000m.

Item	Un（kV）	Cs（μF）	Ic（kA）	Service Life (△C/C≤5%)	Dimensions（mm）
1	30	0.033	2	10000	198×40×100
2	30	0.25	50	10000	120×120×350
3	30	0.32	5	100000	151×58×195
4	40	0.01	2	12000	180×25×80
5	40	0.02	4	10000	180×45×80
6	50	0.033	5	10000	283×105×50
7	50	0.15	30	30000	150×58×699
8	50	0.01	3	10000	275×30×75
9	80	0.06	30	30000	150×58×699
10	100	0.1	10	10000	534×90×200
Remark: All parameters can be customized
