single line feedthrough power capacitor resin sealed bolt-in style feedthrough fitler

Model NO.
LC5502-MT051-250VAC15A-10μF±10%
Quantity:
Single Line feedthrough Filter

Product Picture
Feedthrough Filter,feedthrough capacitor, FRI feedthrough filter, EMI feedthtough filter,hermetically sealed bolt in EMI RFI filter,Ceramic Tube Filter,mini solder in EMI RFI filter, resin sealed bolt in EMI RFI filter.

Product appearance and dimensions(Unit:mm)

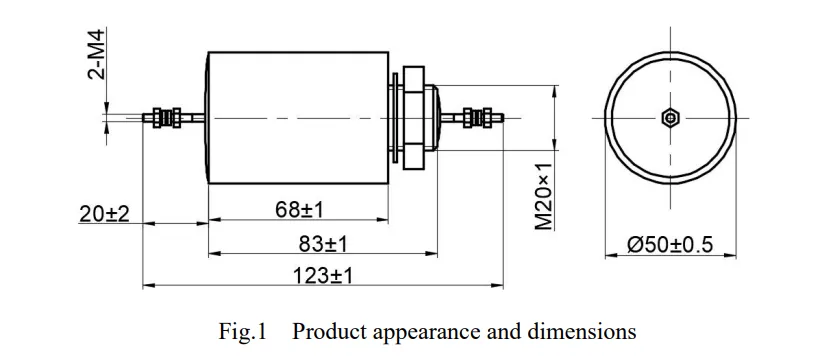

The product is sealed by epoxy on both ends, the appearance and dimensions of the product are shown in fig. 1
Feedthrough Filter,feedthrough capacitor, FRI feedthrough filter, EMI feedthtough filter,hermetically sealed bolt in EMI RFI filter,Ceramic Tube Filter,mini solder in EMI RFI filter, resin sealed bolt in EMI RFI filter.
Specifications
Materials:
Case:nickel-plated aluminum alloy; Central stud:nickel-plated copper alloy;Epoxy sealed,both ends;
Operating temperature: -55℃~+85℃;

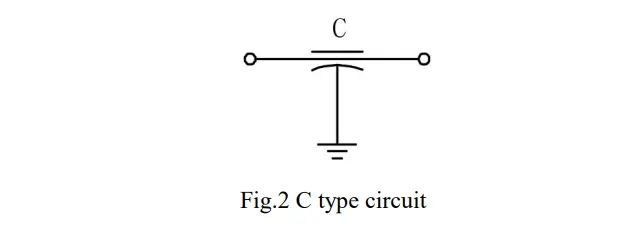

Circuit type: C type,as shown in fig.2;
Feedthrough Filter,feedthrough capacitor, FRI feedthrough filter, EMI feedthtough filter,hermetically sealed bolt in EMI RFI filter,Ceramic Tube Filter,mini solder in EMI RFI filter, resin sealed bolt in EMI RFI filter.

Rated working voltage: 250VAC;
Rated working current: 15A;
Hi-pot test: 2500VDC,5s,no breakdown nor arcing occurring;
Insulation resistance: ≥400MΩ(100VDC);
Capacitance and tolerance: 10uF±10%(1kHz/1VAC).


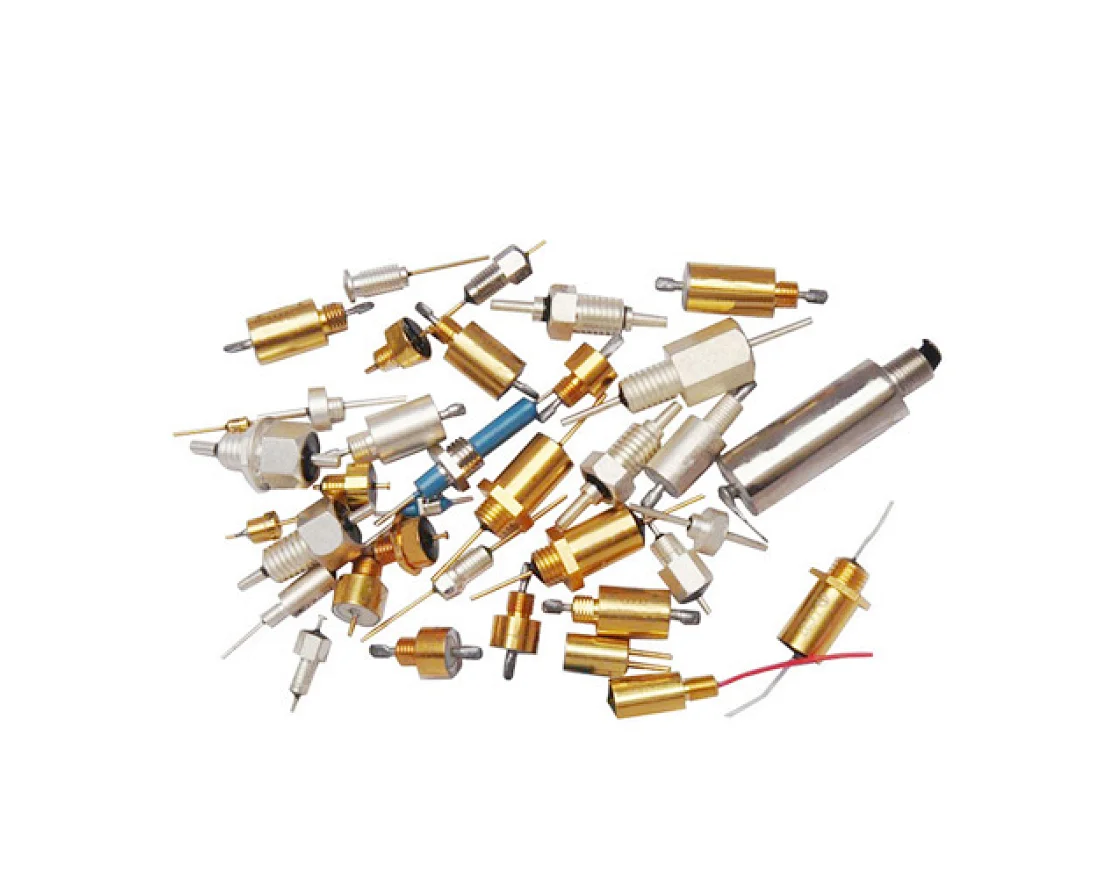

Feedthrough Filter Feature

1. Frequency band: low-pass filter, high-pass filter, VHF (very high frequency) filter and microwave filter lowpass filter, high-pass filter, VHF filter and microwave filter

2. Circuit structure: C filter, L filter, Pi filter, T filter, double-L filter, double-Pi filter and double-T filter

3.  Installation: threaded fastener filter and soldering filter

4. Material: ceramic tube filter, ceramic chip filter and organic film filter

Specification
1. Plating: Silver standard,Nickel or gold available

2. Material: case: brass   leads:half/hard copper

3. Thread:metric thread standard,unified thread available

4. Operating Temperature range:-40ºC to +85ºC or-55ºC +125ºC

5. Insulation Ressistance(25ºC):500 megohm-micofarad  min, or 5,000 negohms min.

6. Dielectric withstanding voltage(DWV):2.5 times rated DC voltage

7. Dissipation factor(DF):30% maximum

8. Rated DC current:25Amps, maximun

Company Profile
Chengdu Shieldtechnic Co., Ltd. Is the exclusive overseas sales department of Chengdu Hongming Electronics Co., Ltd.. Hongming Electronics is a comprehensive enterprise specialized in researching and producing new electronic parts and components. It was established in 1958 and has been one of the Top 100 Electronic Component Enterprises/ in China for the past 20 years.

Hongming owns a national technology center, a national testing and calibration laboratory,  2 manufacturing sites, and 8 specialized institutes. Hongming also possesses quality system certificates of ISO9001 and ISO9002. Currently, there are 2000 employees in Hongming.  The products cover a range of Polypropylene Film Capacitor, EMI filter, Feedthrough Filter, Position Sensor, Magnetic Angle Sensor, PEI, PEK injtection and so on.
Feedthrough Filter,feedthrough capacitor, FRI feedthrough filter, EMI feedthtough filter,hermetically sealed bolt in EMI RFI filter,Ceramic Tube Filter,mini solder in EMI RFI filter, resin sealed bolt in EMI RFI filter.

Feedthrough Filter,feedthrough capacitor, FRI feedthrough filter, EMI feedthtough filter,hermetically sealed bolt in EMI RFI filter,Ceramic Tube Filter,mini solder in EMI RFI filter, resin sealed bolt in EMI RFI filter.
Feedthrough Filter,feedthrough capacitor, FRI feedthrough filter, EMI feedthtough filter,hermetically sealed bolt in EMI RFI filter,Ceramic Tube Filter,mini solder in EMI RFI filter, resin sealed bolt in EMI RFI filter.

Product Description
Feedthrough Filter,Feedthrough Capacitor,Feedthrough Power Capacitor,FRI Feedthrough Filter,EMI Feedthrough Filter,Solder in EMI Filter,Solder in RFI Filter,EMC Filter,Low Pass Filter,High Pass Filter,Resin Sealed Bolt in Filter,Resin Sealed Bolt in EMI Filter,Resin Sealed Bolt in RFI Filter,Multilayer Filter,Pi Filter.
Feedthrough Filter,Feedthrough Capacitor,Feedthrough Power Capacitor,FRI Feedthrough Filter,EMI Feedthrough Filter,Solder in EMI Filter,Solder in RFI Filter,EMC Filter,Low Pass Filter,High Pass Filter,Resin Sealed Bolt in Filter,Resin Sealed Bolt in EMI Filter,Resin Sealed Bolt in RFI Filter,Multilayer Filter,Pi Filter.
