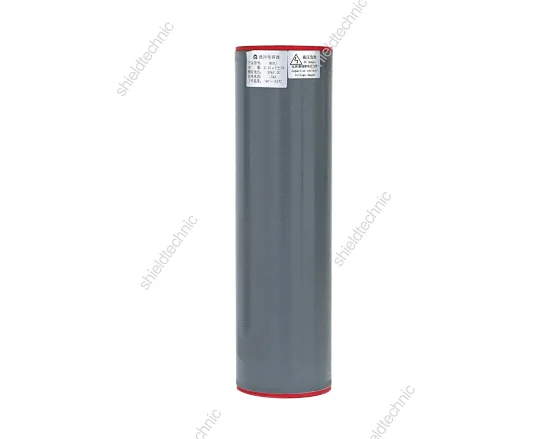

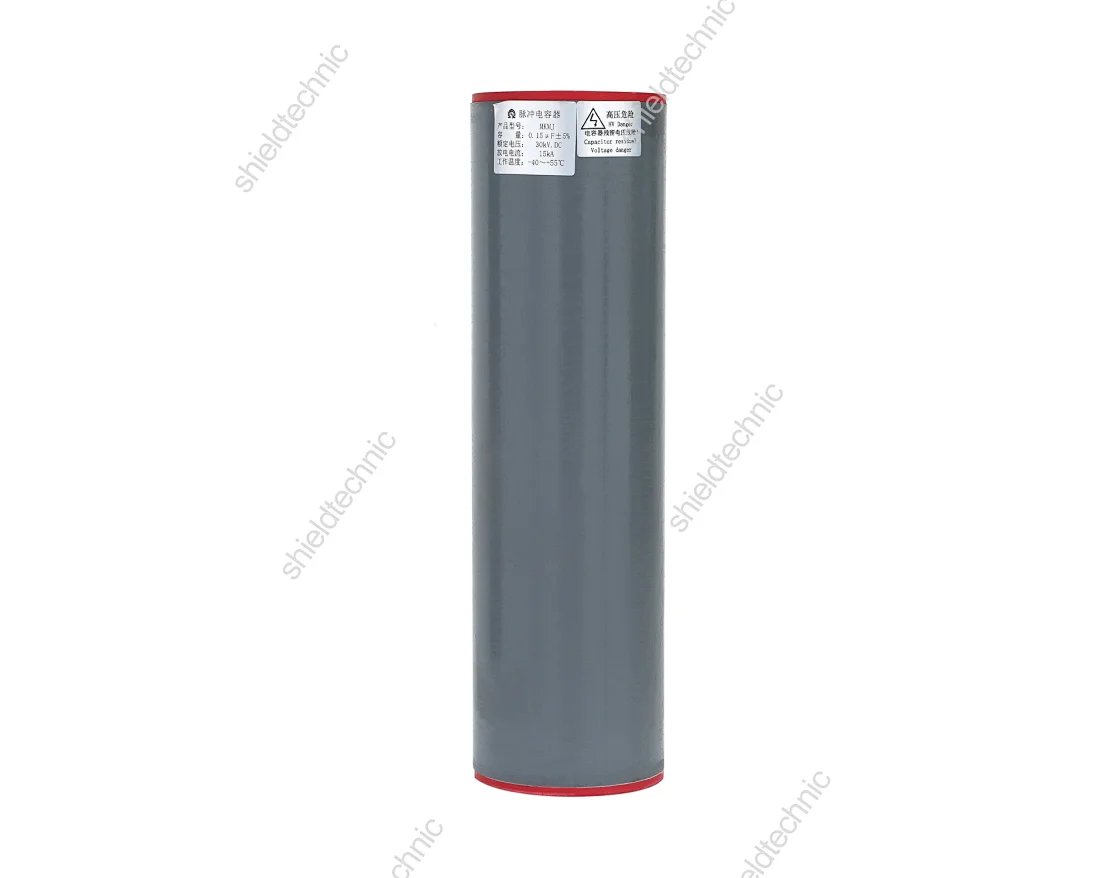

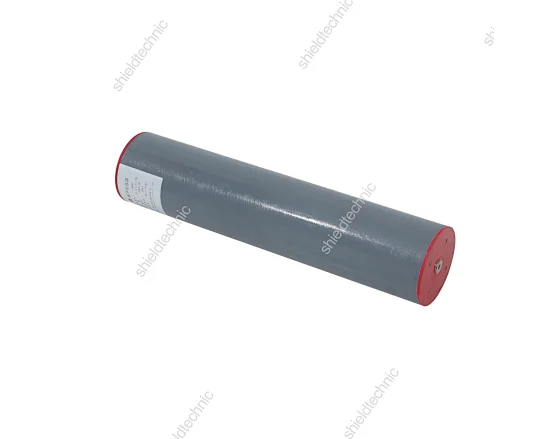

high voltage high efficiency polypropylene film power capacitor
Product Feature
- Applying imported and domestic metallized film.

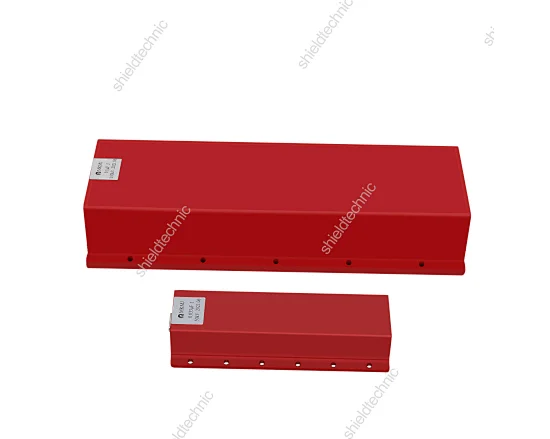

- Metallic,non-metallic package, non-inductive winding.
- Dry-sealed structure,excellent moisture resistance, safe and reliable.
- Reliable performance and good self-healing properties.
- 高压冲击发生器
- Remark: the installation, capacitance,service life, energy density, dimensions are customizable.
- High power pulse power supply. High voltage energy system with powerful laser and intensity beam.
- High voltage generator. Equipment with high efficiency intense current, short-duration pulse, transient physican course.
Typical Schematic

Technical Characteristics
Capacitance | 0.01-0.32uF | Test Voltage terminal to terminal | 1.2UR~1.3UR |
Capacitance Tolerance | 0~+5% | Test Voltage terminal to Case | 1.4UR~1.5UR |
Rated Voltage | 30kVDC~100kVDC | Reference Standard | JB/T 8168-1999 |
Operating Temperature | -20ºC~+55ºC | Shell | Insulation shell |
Extraction | Bolt and nut | Encapsulation | Dry-sealed structure, Epoxy sealing |
Reference | JB/T 8168 | Max Altitude | 2000m |
Flame Resistance | UL94V-0 | ||
Remark: The influence of the altitude on the convectional cooling and external insulation should be considered if the altitude is above 2000m. |
Specifications
Item | Voltage(kV) | Capacitance (μF) | Peak Current (kA)) | Service lifetime(ΔC/C≤5%) | Dimensions |
1 | 30 | 0.033 | 2 | 10000 | 198×40×100 |
2 | 30 | 0.25 | 50 | 10000 | 120×120×350 |
3 | 30 | 0.32 | 5 | 100000 | 151×58×195 |
4 | 40 | 0.01 | 2 | 12000 | 180×25×80 |
5 | 40 | 0.02 | 4 | 10000 | 180×45×80 |
6 | 50 | 0.033 | 5 | 10000 | 283×105×50 |
7 | 50 | 0.15 | 30 | 30000 | 150×58×699 |
8 | 50 | 0.01 | 3 | 10000 | 275×30×75 |
9 | 80 | 0.06 | 30 | 30000 | 150×58×699 |
10 | 100 | 0.1 | 10 | 10000 | 534×90×200 |
Remark: All parameters are customizable. |
Product Descrption
Chinese polypropylene film capacitor, power capacitor,High Voltage Capacitor,High Current Pulse Capacitor,High Efficiency Capacitor,high voltage polypropylene film capacitor,high voltage polypropylene capacitor,high voltage film capacitor.
Factory Profile

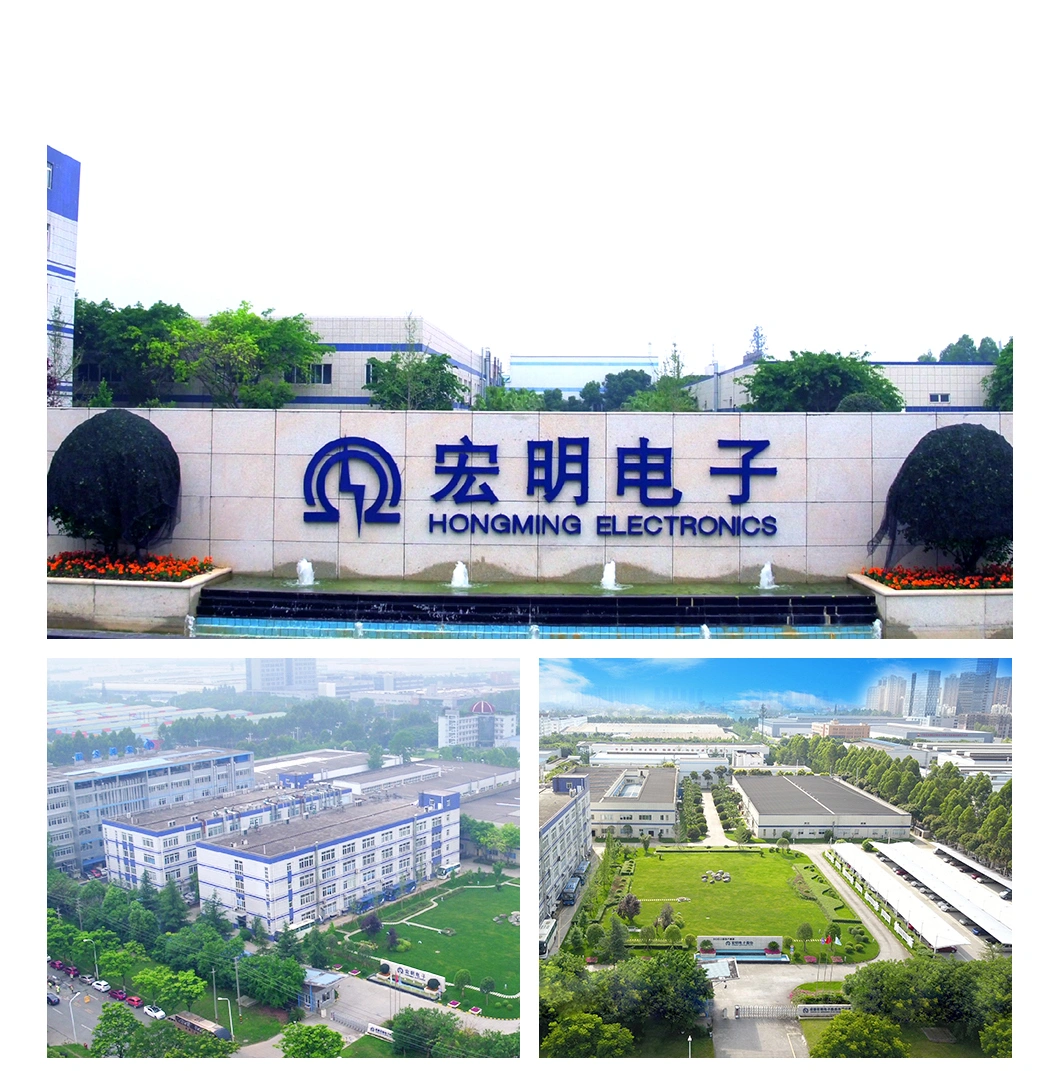

Chengdu Shieldtechnic Co., Ltd. Is the exclusive overseas sales department of Chengdu Hongming Electronics Co., Ltd.. Hongming Electronics is a comprehensive enterprise specialized in researching and producing new electronic parts and components. It was established in 1958 and has been one of the Top 100 Electronic Component Enterprises in China for the past 20 years.
Hongming owns a national technology center, a national testing and calibration laboratory, 2 manufacturing sites, and 8 specialized institutes. Hongming also possesses quality system certificates of ISO9001 and ISO9002. Currently, there are 2000 employees in Hongming. The products cover a range of Polypropylene Film Capacitor, non-contacting angular displacement sensor EMI filter, position sensor, and so on.
