Energy Storage High Voltage Polypropylene Film Pulse Power Capacitor
General Purpose, AC / Motor, Power, Lighting, Air Conditioner, High Voltage, Fan, Automobile
Low Frequency Coupling, High Frequency Coupling, Tuning, Filter, Low Frequency Bypass, High Frequency Bypass
Low Frequency Coupling, High Frequency Coupling, Tuning, Filter, Low Frequency Bypass, High Frequency Bypass

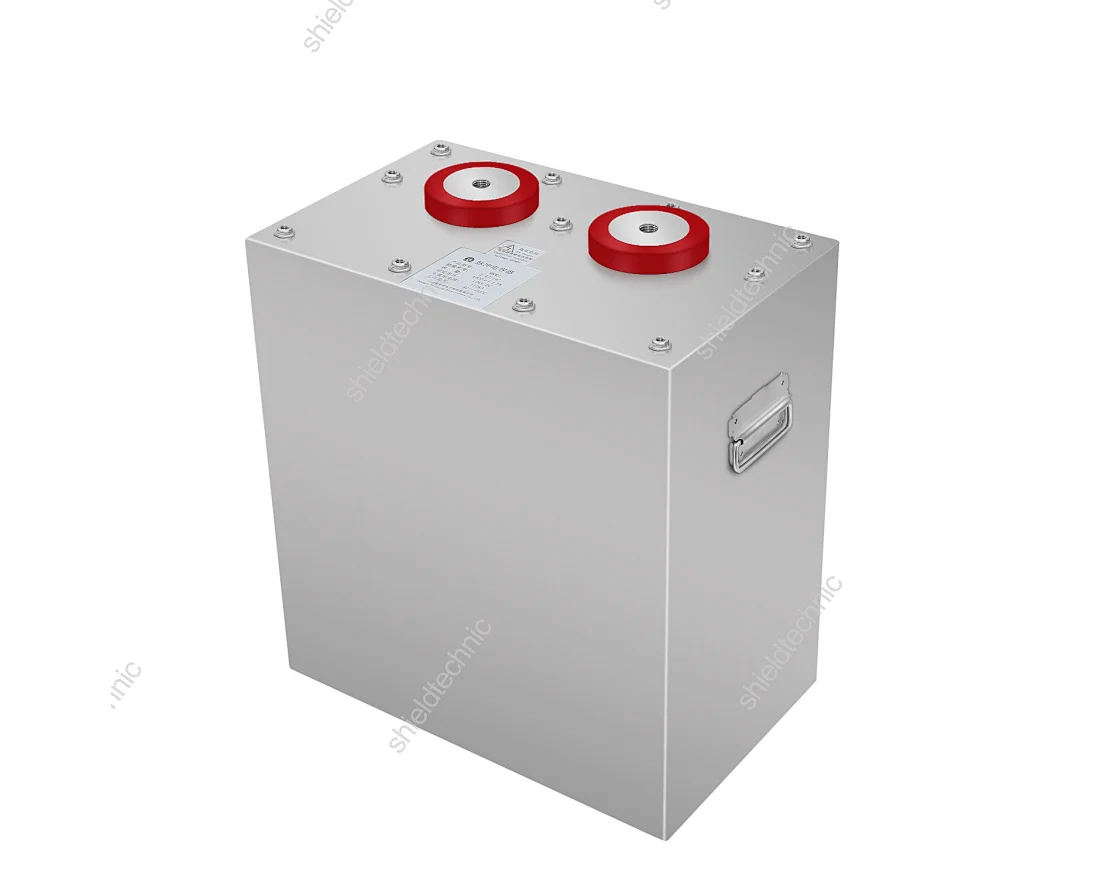

MKMJ-10kV-8000µF
FOB Chengdu
Chengdu
Quantity:
Product Feature
- Applying imported and domestic metallized film.
- Metallic, non-metallic package,non-inductive winding.
- High specific energy density, excellent electrical properties.
- Dry-sealed stracture, excellent moisture resistance,safe and reliable.
- Reliable performance and good self-healing property.
- Remark: the installation, capacitance,service life, energy density, dimensions are customizable.
Applications
- High-voltage generator. Equipement with high efficiency intense current, short-duration pulse, transiant physical course.
- Equipment on extreme conditions.High-intensity magnetifields
- High-energy accelerator. Test installation of nuclear fusion.
Technical Characteristics
| Capacitance | 1000μF~16000μF | Test Voltage terminal to terminal | 1.0 UR ~1.1 UR |
| Capacitance Tolerance | 0~+5% | Test Voltage terminal to case | 1.1 UR~1.2 UR |
| Rated Voltage | 3.5kVDC~35kVDC | Reference Standard | JB/T 8168-1999 |
| Operating Temperature | -20ºC~+55ºC | Shell | Stainless steel, Aluminum shell, Insulated enclosure |
| Terminal | Bolt and nut | Encapsulation | Dry-sealed structure, epoxy sealing |
| Max Altitude | 2000m | Flame Resistance | UL94V-0 |
| Remark: The influence of the altitude on the convection cooling and external insulation should be considered if the altitude is above 2000m. | |||
Specifications
| Item | Un(kV) | Cs(μF) | Ic(kA) | Reverse Voltage(%) | Life(△C/C≤5%) | Energy Density(J/cc) | Denmension(mm) |
| 1 | 3.5 | 42450 | 100 | 10 | 3000 | 2.2 | 319×400×931 |
| 2 | 4 | 2000 | 20 | 20 | 30000 | 0.8 | 330×100×600 |
| 3 | 5 | 1000 | 25 | 10 | 50000 | 0.6 | 290×160×448 |
| 4 | 5 | 2000 | 6.5 | 10 | 5000 | 2.5 | 290×86×400 |
| 5 | 6 | 1200 | 35 | 40 | 20000 | 1 | 290×160×465 |
| 6 | 6.5 | 16000 | 100 | 10 | 3000 | 2.5 | 504×388×691 |
| 7 | 7 | 1100 | 30 | 40 | 12000 | 1.2 | 290×160×480 |
| 8 | 8 | 1000 | 8 | 10 | 10000 | 1.6 | 279×157×455 |
| 9 | 9 | 1000 | 6.5 | 10 | 8000 | 2 | 279×157×455 |
| 10 | 10 | 1000 | 6.5 | 10 | 5000 | 2.5 | 279×157×455 |
| 11 | 10 | 1000 | 6.5 | 10 | 5000 | 2.5 | 290×172×400 |
| 12 | 10 | 2000 | 130 | 10 | 3000 | 2.38 | 470×330×270 |
| 13 | 10 | 4400 | 110 | 10 | 3000 | 2.4 | 516×322×550 |
| 14 | 15 | 500 | 20 | 10 | 8000 | 1.4 | 280×320×448 |
| 15 | 25 | 330 | 10 | 10 | 6000 | 1.7 | 450×280×478 |
| 16 | 30 | 220 | 30 | 10 | 50000 | 0.6 | 580×330×860 |
| 17 | 35 | 254 | 35 | 10 | 40000 | 0.8 | 740×385×680 |
| Remark: All parameters are customizable. | |||||||

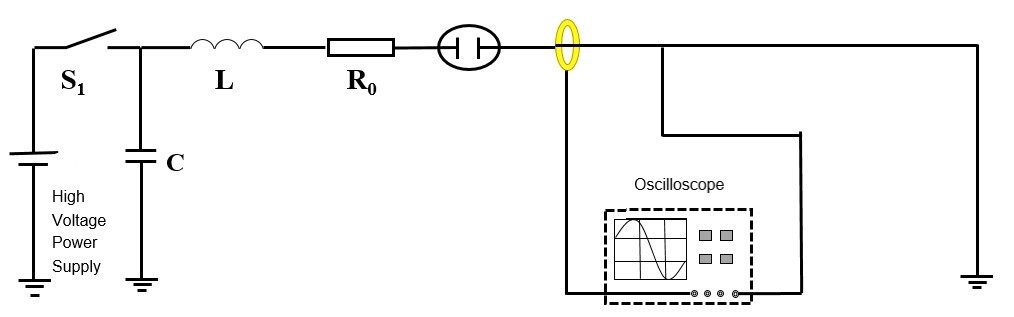

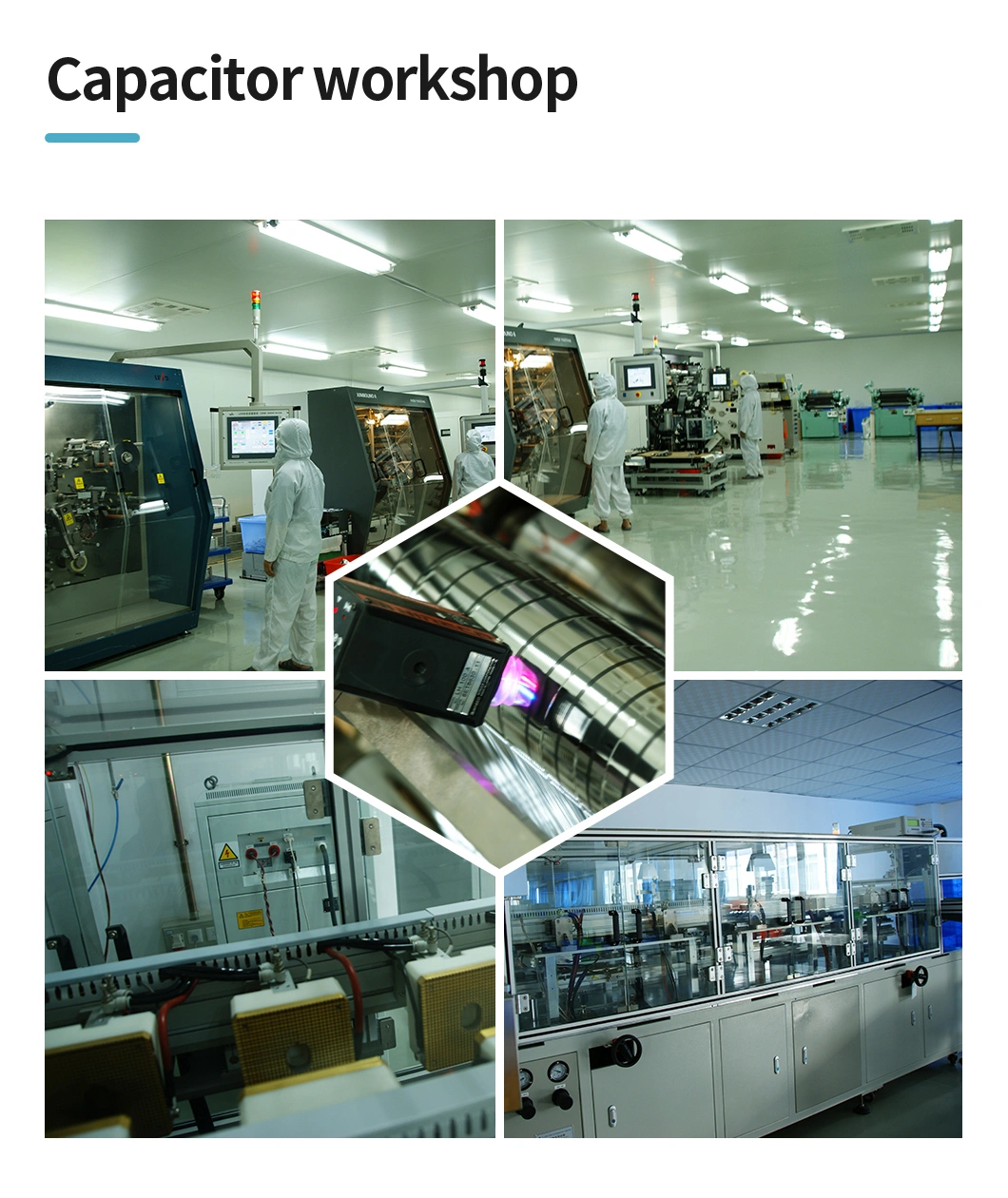

Factory Profile
Chengdu Shieldtechnic Co., Ltd. Is the exclusive overseas sales department of Chengdu Hongming Electronics Co., Ltd.. Hongming Electronics is a comprehensive enterprise specialized in researching and producing new electronic parts and components. It was established in 1958 and has been one of the Top 100 Electronic Component Enterprises in China for the past 20 years.
Hongming owns a national technology center, a national testing and calibration laboratory, 2 manufacturing sites, and 8 specialized institutes. Hongming also possesses quality system certificates of ISO9001 and ISO9002. Currently, there are 2000 employees in Hongming. The products cover a range of Polypropylene Film Capacitor, non-contacting angular displacement sensor, EMI filter, position sensor, and so on.
