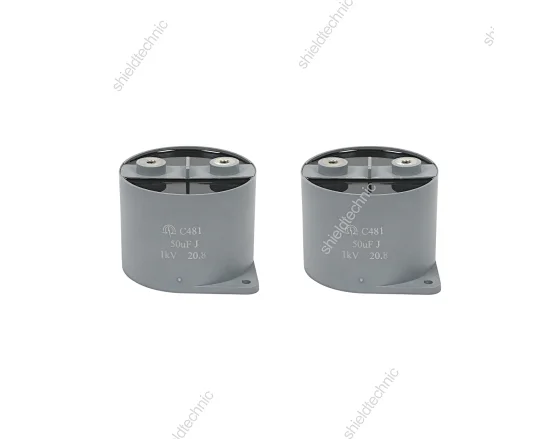

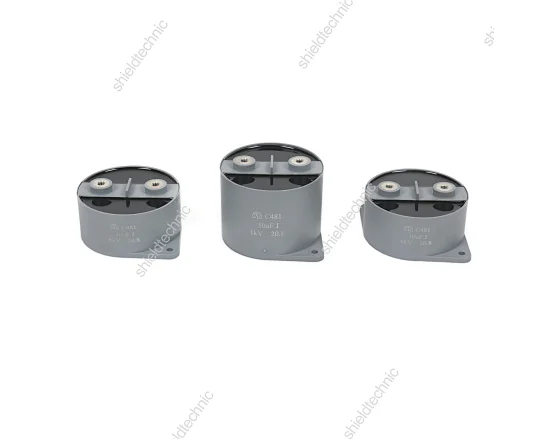

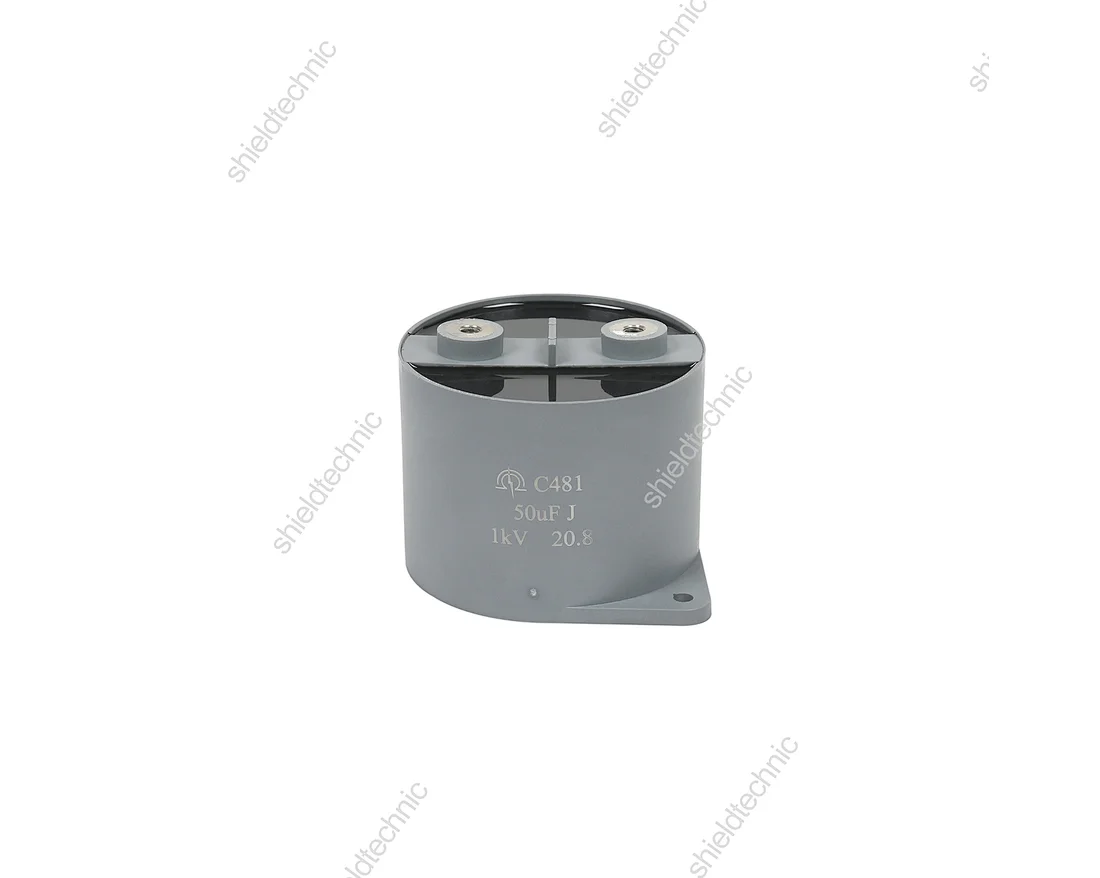

Solar Inverter and Wind Inverter High Voltage Polypropylene Film DC-Link Power Pulse Capacitor
- DC link capacitor with good self-healing properties, safe and reliable.
- Low ESR, low heat, withstanding high ripple current.
- DC link capacitor with plastic shell, epoxy sealing.
- Bolt and nut output.

- Smoothing and filtering the DC-Link of the motor driving system in new energy vehicles.
- DC link capacitor for Solar inverter and wind inverter.
- Filtering the DC side of Switching power supply.
RatedVoltage | 450VDC~ 1100VDC | CapacitanceRange | 10~400μF |
Loss Angle | tgσ≤0.002(100Hz) | Capacitance Tolerance | 0~+5% |
Rated Current | dv/dt ≥8V/ms | Withstand Voltage | 1.2UR |
Encapsulation | Dry type, filled with epoxy | Shell | Aluminum shell |
Max Altitude | 2000m | Flame Resistance | UL94V-0 |
Permissibility | S2 | Service life time | 10000 h |
Reference Standard | GB/T17702-2013,IEC61071 | ||
Remark: The influence of the altitude on the convectional cooling and external insulation should be considered if the altitude is above 2000m. |
Rated Voltage(V) | Capacitance (μF) | φD (mm) | H (mm) | Nut outgoing | Bolt outgoing | ESL(nH) | dv/dt (v/us) | IP (kA) | Irms 85ºC(A) | Rth k/w | ESR 1kHz (mΩ) |
450 | 180 | 84.5 | 40 | M6×10 | M8×20 | 25 | 12 | 2.1 | 80 | 6 | 1 |
380 | 84.5 | 65 | 40 | 8 | 3 | 80 | 4.8 | 0.8 | |||
800 | 75 | 84.5 | 40 | 25 | 25 | 1.8 | 70 | 6 | 1.5 | ||
220 | 84.5 | 65 | 40 | 11 | 2.4 | 70 | 4.8 | 1.1 | |||
1100 | 60 | 84.5 | 40 | 25 | 30 | 1.8 | 55 | 6 | 2 | ||
90 | 84.5 | 50 | 32 | 25 | 2.2 | 65 | 5 | 1.8 |
Factory Profile
Chengdu Shieldtechnic Co., Ltd. Is the exclusive overseas sales department of Chengdu Hongming Electronics Co., Ltd.. Hongming Electronics is a comprehensive enterprise specialized in researching and producing new electronic parts and components. It was established in 1958 and has been one of the Top 100 Electronic Component Enterprises/ in China for the past 20 years.
Hongming owns a national technology center, a national testing and calibration laboratory, 2 manufacturing sites, and 8 specialized institutes. Hongming also possesses quality system certificates of ISO9001 and ISO9002. Currently, there are 2000 employees in Hongming. The products cover a range of organic film capacitor, EMI filter, position sensor, magnetic angle sensor,PEI,PEK injection and so on.
