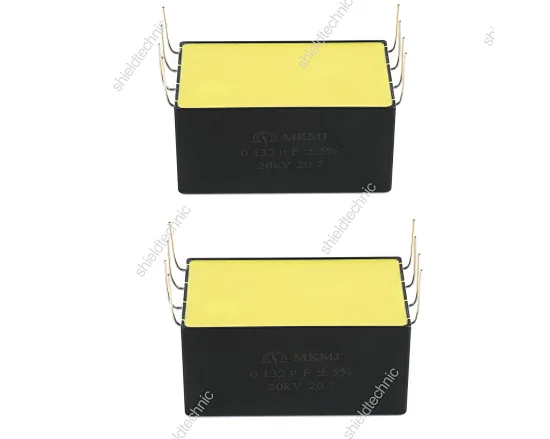

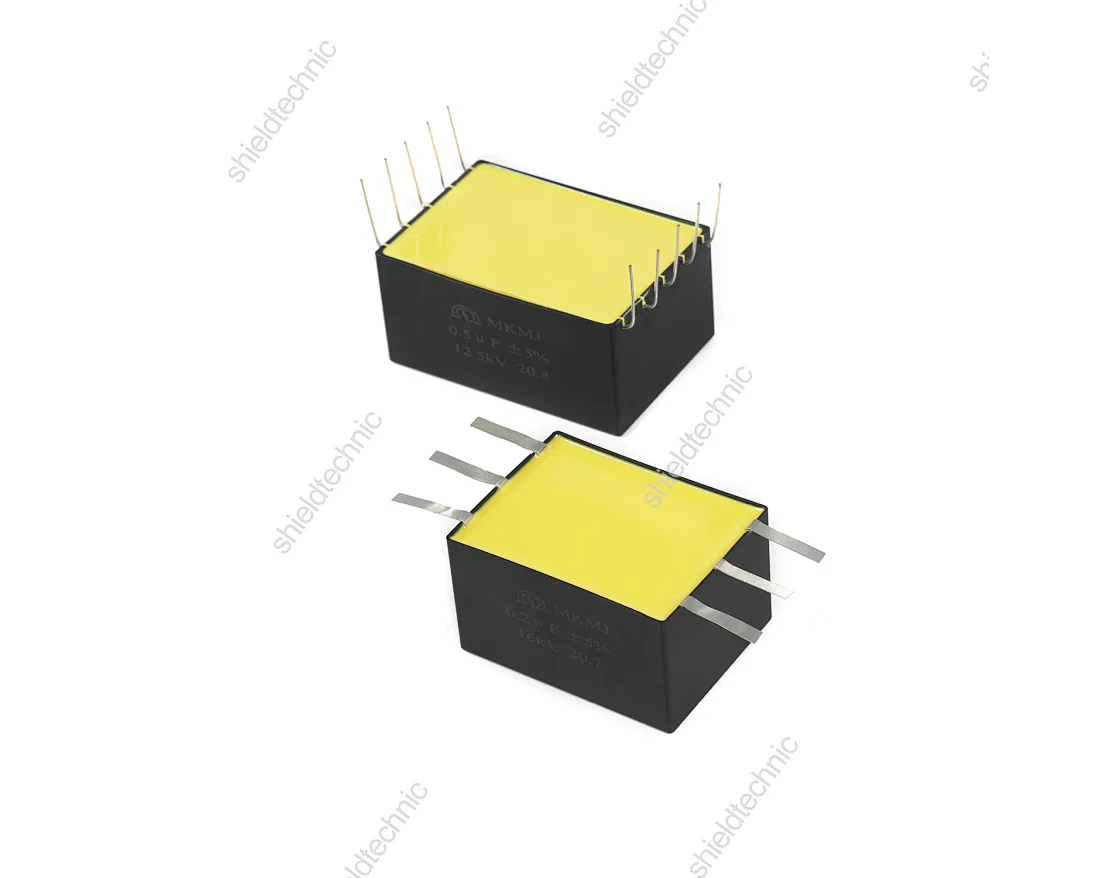

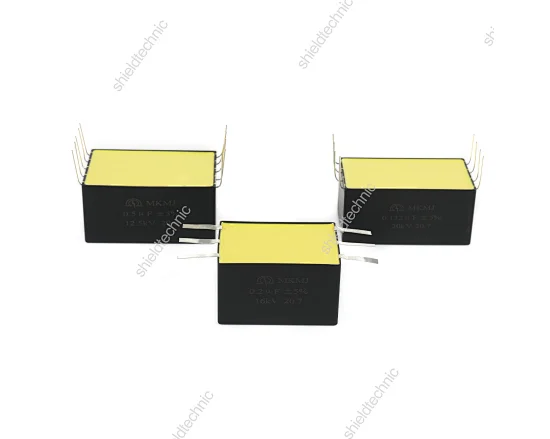

Metallied Polypropylene Film High Voltage 16kv 0.2UF Ignition Capacitor
General Purpose, AC / Motor, Power, Lighting, Air Conditioner, High Voltage, Fan, Automobile
Low Frequency Coupling, High Frequency Coupling, Tuning, Filter, Low Frequency Bypass, High Frequency Bypass
Low Frequency Coupling, High Frequency Coupling, Tuning, Filter, Low Frequency Bypass, High Frequency Bypass
MKMJ-16KV-0.2uF
FOB Chengdu
Chengdu
Quantity:
Product Feature
- Applying imported and domestic metallized film.
- Metallic, non-metallic package, non-inductive winding.
- High current impulse withstanding capability,low dissipation.
- Dry-sealed structure, excellent insulation resisitance, safe and reliable.
- Good frequency charaterstic and good self-healing property.
Applications
- Ignition Capacitor for discharge ignition, ignition systerm.
- High speed forwarding engine, small engine.
- Ignition Capacitor for Turbo- powered flight vehicle
- Ignition system for autocycle, weeding machine, electric saw.
Typical Schematic
| RatedVoltage | ≤20Kv | Capacitance Range | ≤5µF |
| Loss Angle | tgσ≤0.002(100Hz) | Withstand Voltage | 1.5UR |
| Rated Current | dv/dt ≥8V/ms | Insulation resistance | dv/dt≥12V/μs |
| Encapsulation | Dry type, filled with epoxy | Shell | Aluminum and plastic shell |
| Max Altitude | 2000m | Flame Resistance | UL94V-0 |
| Permissibility | S2 | Service life time | 10000 h |
| Reference Standard | GB/T17702-2013,IEC61071 | ||
| Remark: The influence of the altitude on the convectional cooling and external insulation should be considered if the altitude is above 2000m. | |||
.
Factory Profile
Chengdu Shieldtechnic Co., Ltd. Is the exclusive overseas sales department of Chengdu Hongming Electronics Co., Ltd.. Hongming Electronics is a comprehensive enterprise specialized in researching and producing new electronic parts and components. It was established in 1958 and has been one of the Top 100 Electronic Component Enterprises in China for the past 20 years.

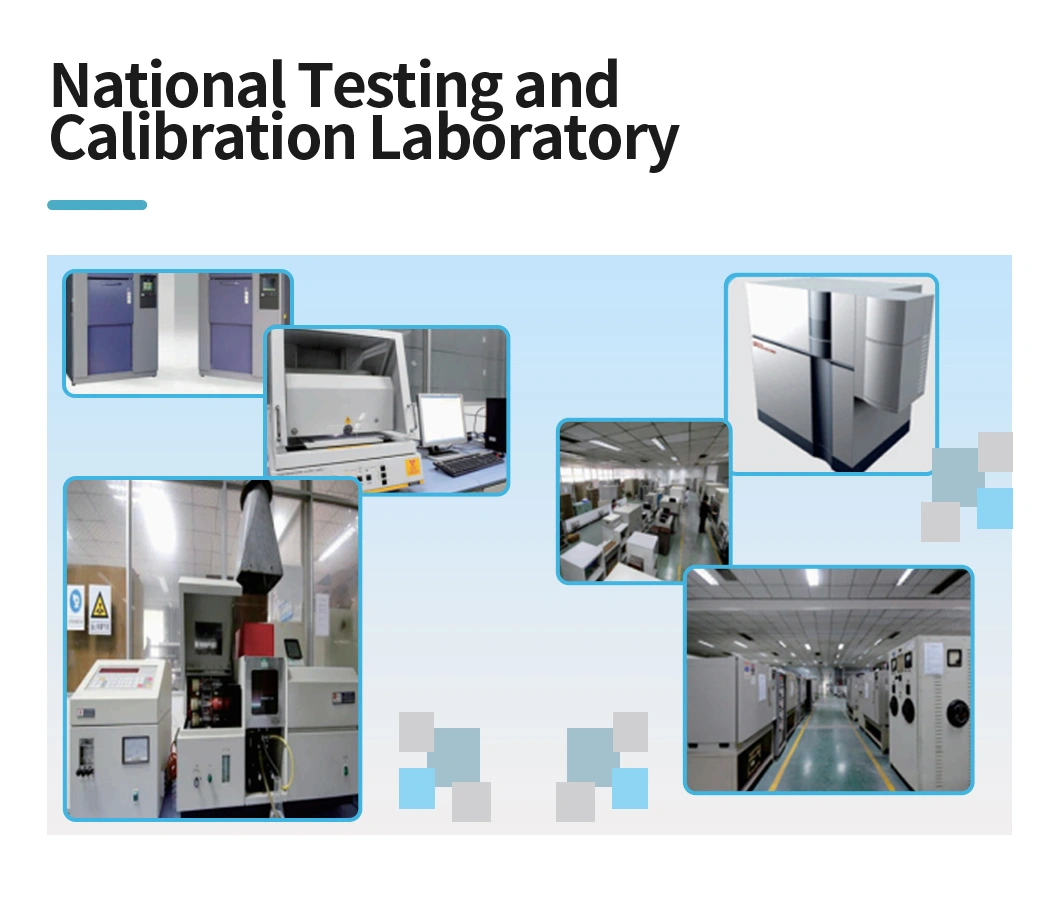

Hongming owns a national technology center, a national testing and calibration laboratory, 2 manufacturing sites, and 8 specialized institutes. Hongming also possesses quality system certificates of ISO9001 and ISO9002. Currently, there are 2000 employees in Hongming. The products cover a range of polypropylene film capacitor, non-contacting angular displacement sensor EMI filter, position sensor, PEI, PEK injection and so on.
