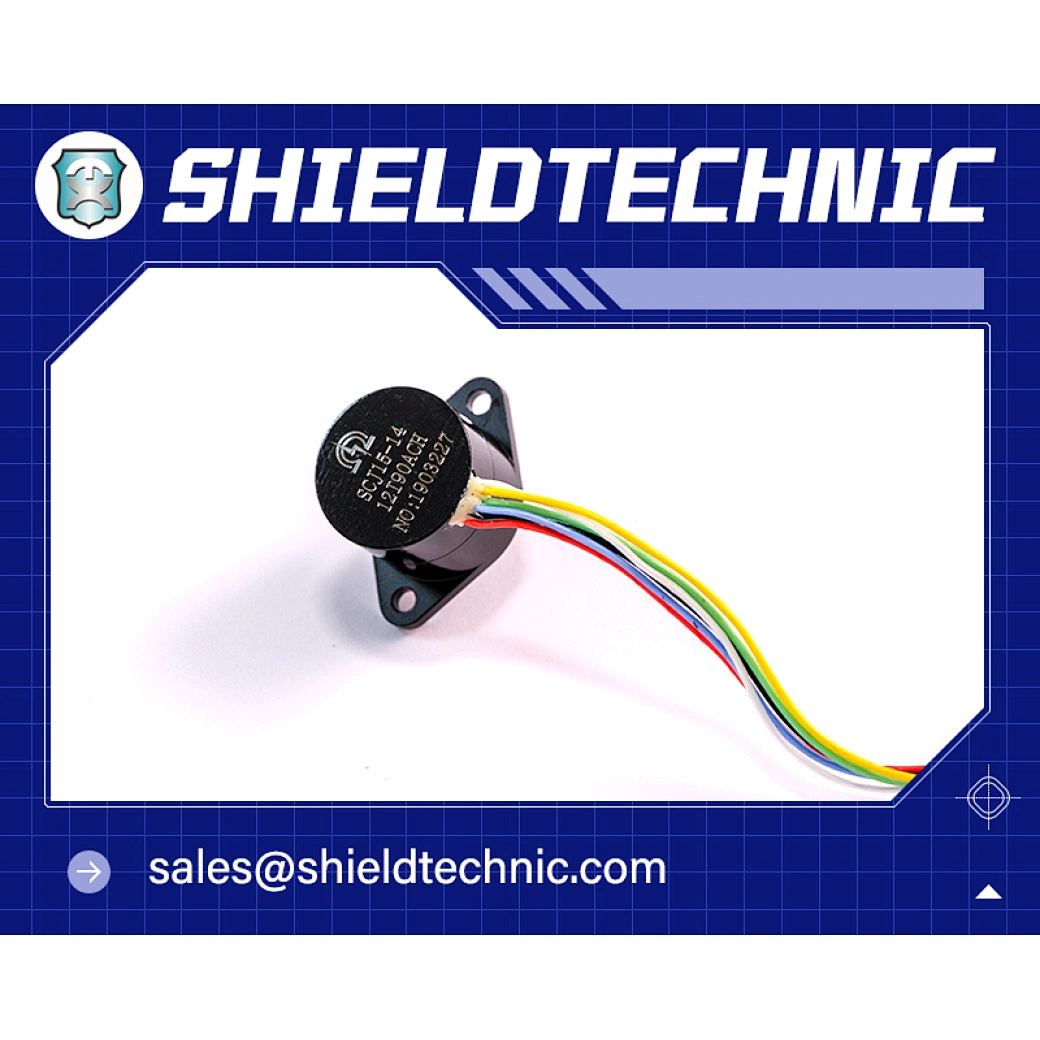

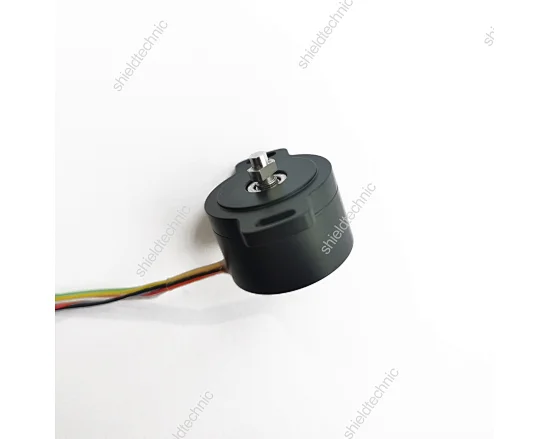

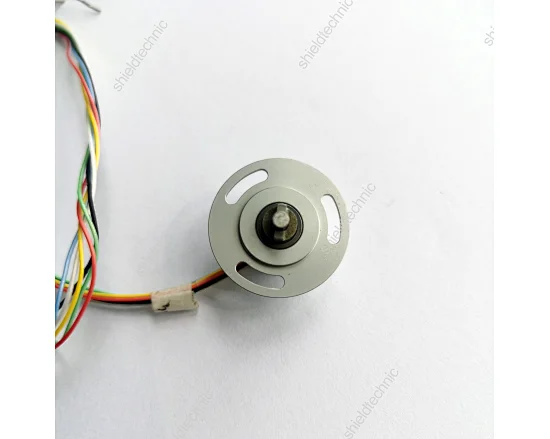

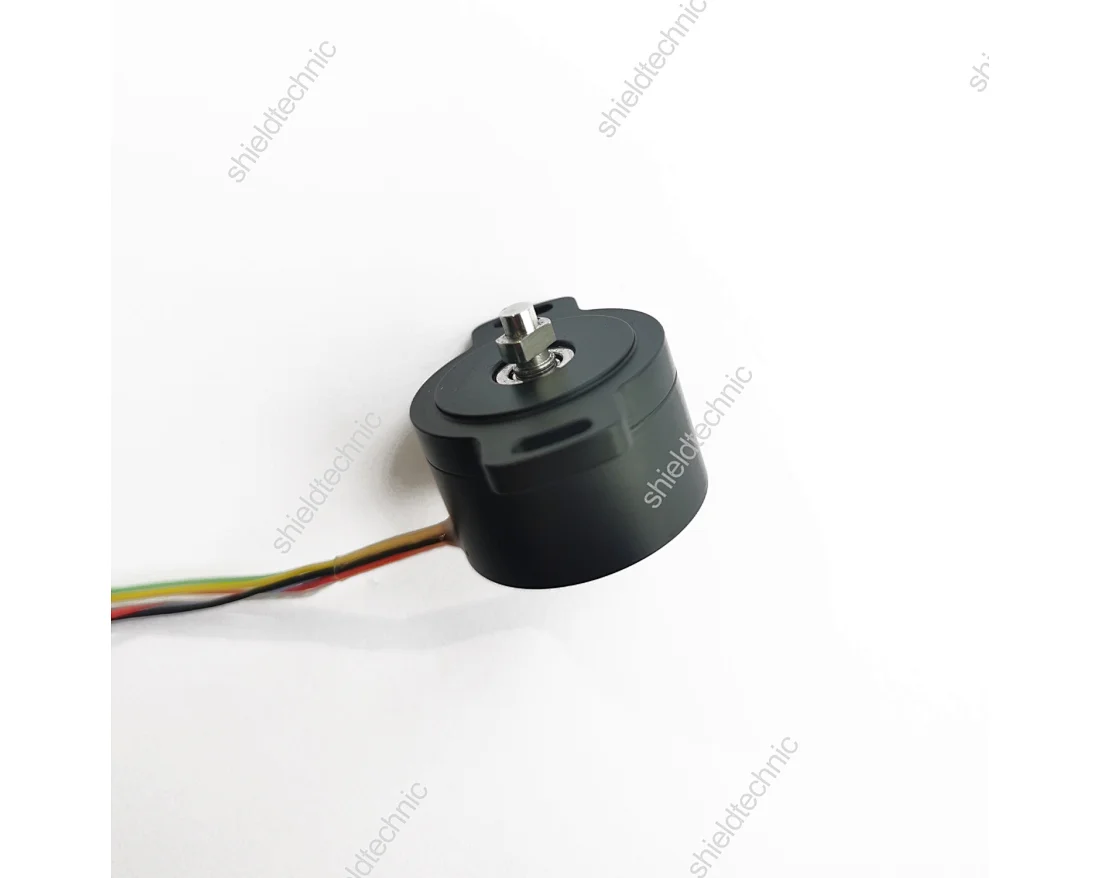

SCJ14-2-14C180ACH Non-contacting Angular Displacement Sensor

Model NO.
SCJ14-2-14C180ACH
Quantity:


Product Feature

  1. Magnetic Angle Sensor,​​Non-contacting hall effect technology, giant magnetoresistance effect, magnetism-sensing technology.
  2. Sensor ID number and output time can be calibrated.
  3. The output zero point can be recitified.
  4. No-contacting, high reliability, long service life.
  5. Standard Compliance:GJB439A-2013,GJB1091-1991,GJB5235-2004,GJB/Z141-2004,GJB438B-2009,GJB2786A-2009,GJB2786A-2009/GJB/Z102A-2012.
Technical specification

Mechanical angle360°limitless
Effective electrical angle0~180°
Working Voltage5.0VDC
Current consumption≤55mA
Output signalCAN bus
Independent linearity≤±0.2%
Direction of the output signalWith counterclockwise rotation, the output increased.
Resolving Power14bit
Output stability≤0.03°
Operation temperature-55~125
Maximum service lifeInfinite theoretical service life
InstallationScrew retention
Executive standardQ/RQ20006-2016


Outline Dimensions
Magnetic Angle Sensor,Hall Sensor Non-Contacting Displacement Magnetic Angle Sensor,Angle Sensor,Position Sensor,Angle Displacement Sensor,Non-Contacting Hall Effect Technology,Giant Magnetoresistance Effect.Sensor Displacement Position.


Outgoing line Description
The electricity cables are led out on one side, the length og the cables should no less than 600mm. The sensor has 4 outgoing lines, the lines are AFR250-0.12mm interconnection wire with high temperature resistance, including Red-+Vdc, White-GND, Blue-CANL, Yellow-CANH.


Instruction
  1.  The receiving ID address is 0xAA when the sensor been calibrated.
  2. The zero point setting: EO AA AA, there is no need to recharge after set the zero point, check the data if the displayed value is hecadecimal 0x2000, if yes, the relevant angle is 0°.
  3. ID setting: for example, ED OO XX,ED OO is the identifier, XX is the calibrated ID. After calibration and power on again, the ID change to calibrated ID.
  4. Time setting:EE OO XX, EE OO is the identifier, XX is the selected time, the XX is select from one of (02/03/04/05/06/07/08/09/10/11/12/13/14/15),the time standard is 50us. For example, if XX is 06, the scheduled delivery time is 300us. After time calibration and power on again, the communication time will change to the calibrated time.
Model selection

1SCJNon-contact angular displacement precision sensor
2XXShape and diameter
3XSeries No.
410,12,14,16Resolution (Bit)
5


A,I,P,X,S and so on
A: Analog linear output
I:SSI output
P:PWM output
X: A,B orthogonal two-way and Index output
S:SPI output
C: CAN BUS
RI:RS422
RII:RS485
RIII:RS232
660,90,180,270,360Angle detection range (Can be customized)
7A,BPower supply:A is 5.0V, B is 10.0~15.0V
8A,B,COutput:A is 0~5.0V, B is 0~10.0V, C: Can be customized
9C,WC: Counterclockwise output increases
W:  clockwise output increases
10HWorking temperature: -55~125ºC


Factory Profile

Chengdu Shieldtechnic Co., Ltd. Is the exclusive overseas sales department of Chengdu Hongming Electronics Co., Ltd.. Hongming Electronics is a comprehensive enterprise specialized in researching and producing new electronic parts and components. It was established in 1958 and has been one of the Top 100 Electronic Component Enterprises/ in China for the past 20 years.

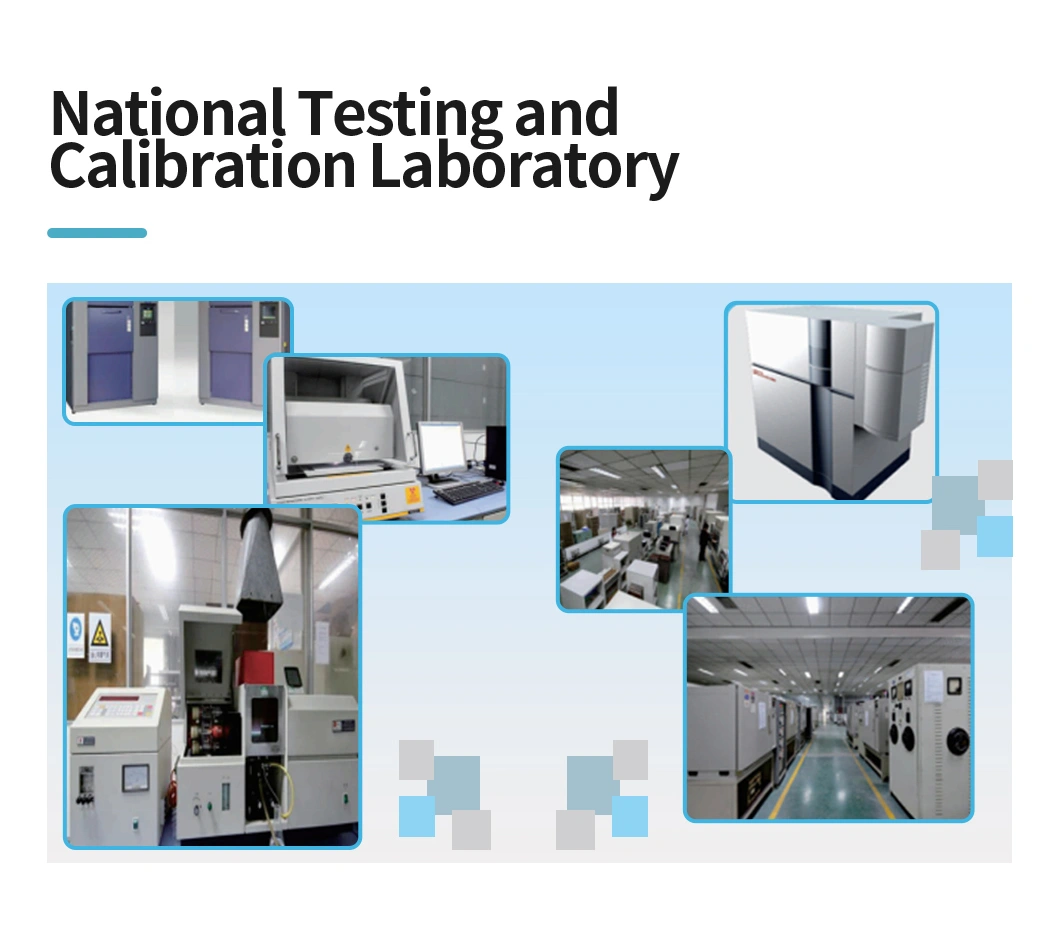

Hongming owns a national technology center, a national testing and calibration laboratory,  2 manufacturing sites, and 8 specialized institutes. Hongming also possesses quality system certificates of ISO9001 and ISO9002. Currently, there are 2000 employees in Hongming.  The products cover a range of  organic film capacitor, EMI filter, position sensor, magnetic angle sensor,PEI,PEK injection and so on.
