Power Capacitor
Polypropylene Capacitor
Pulse Capacitor
Electronic Component
Power Capacitor

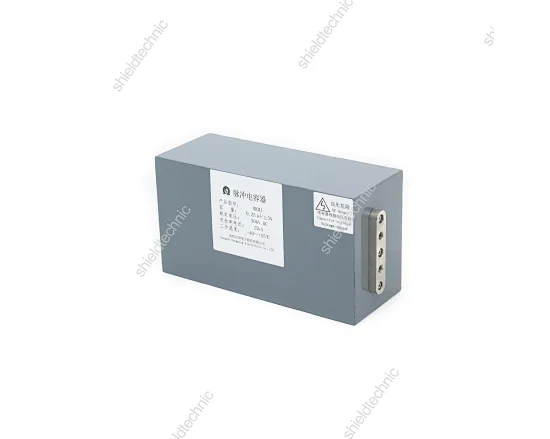

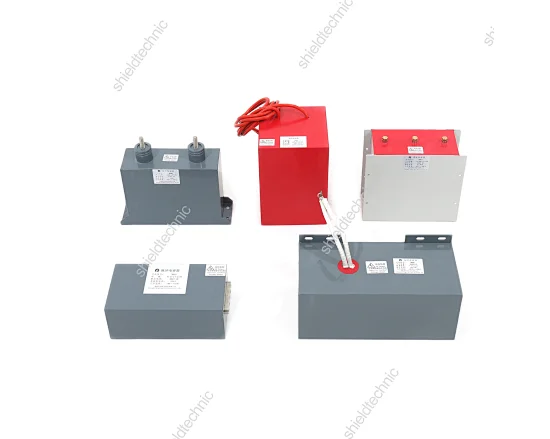

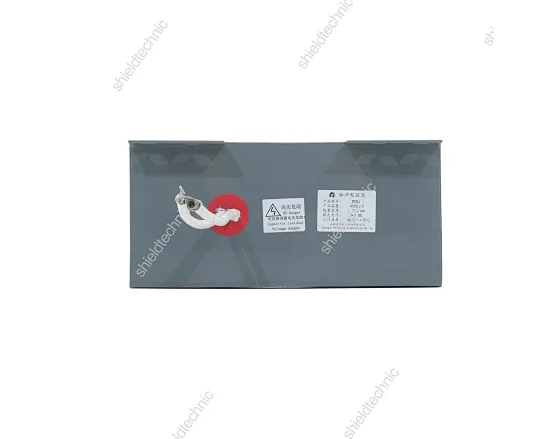

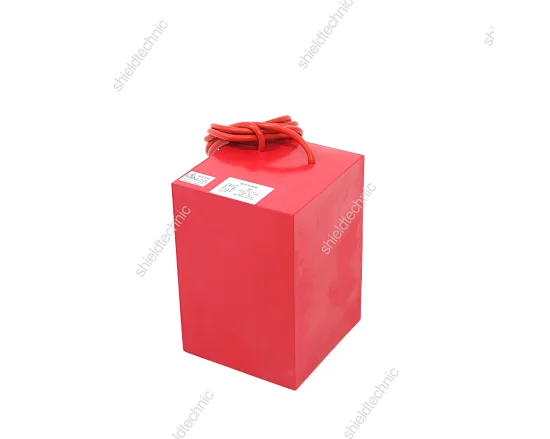

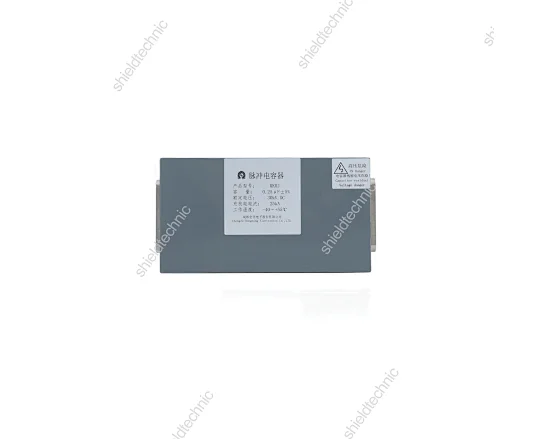

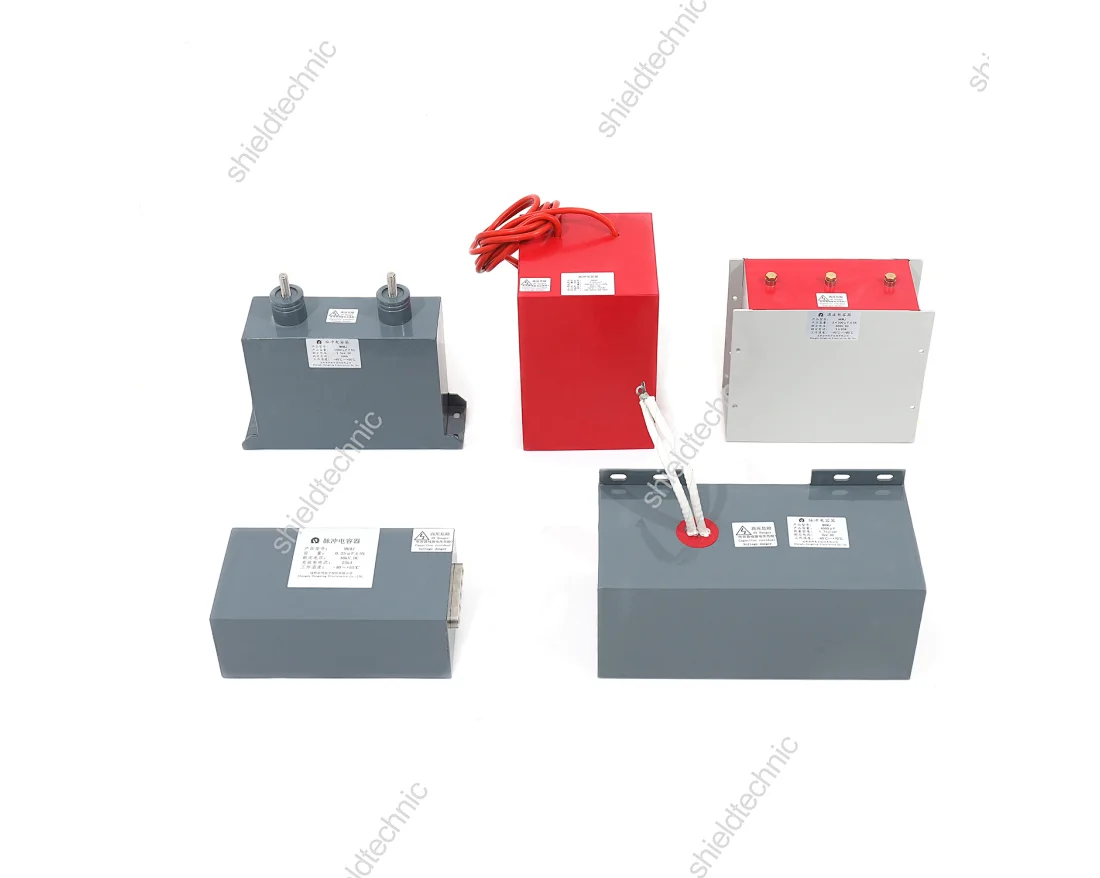

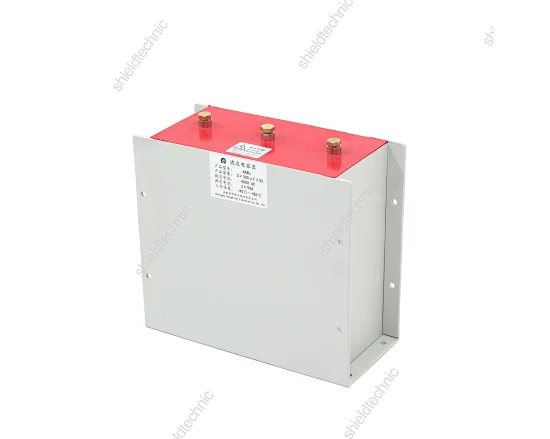

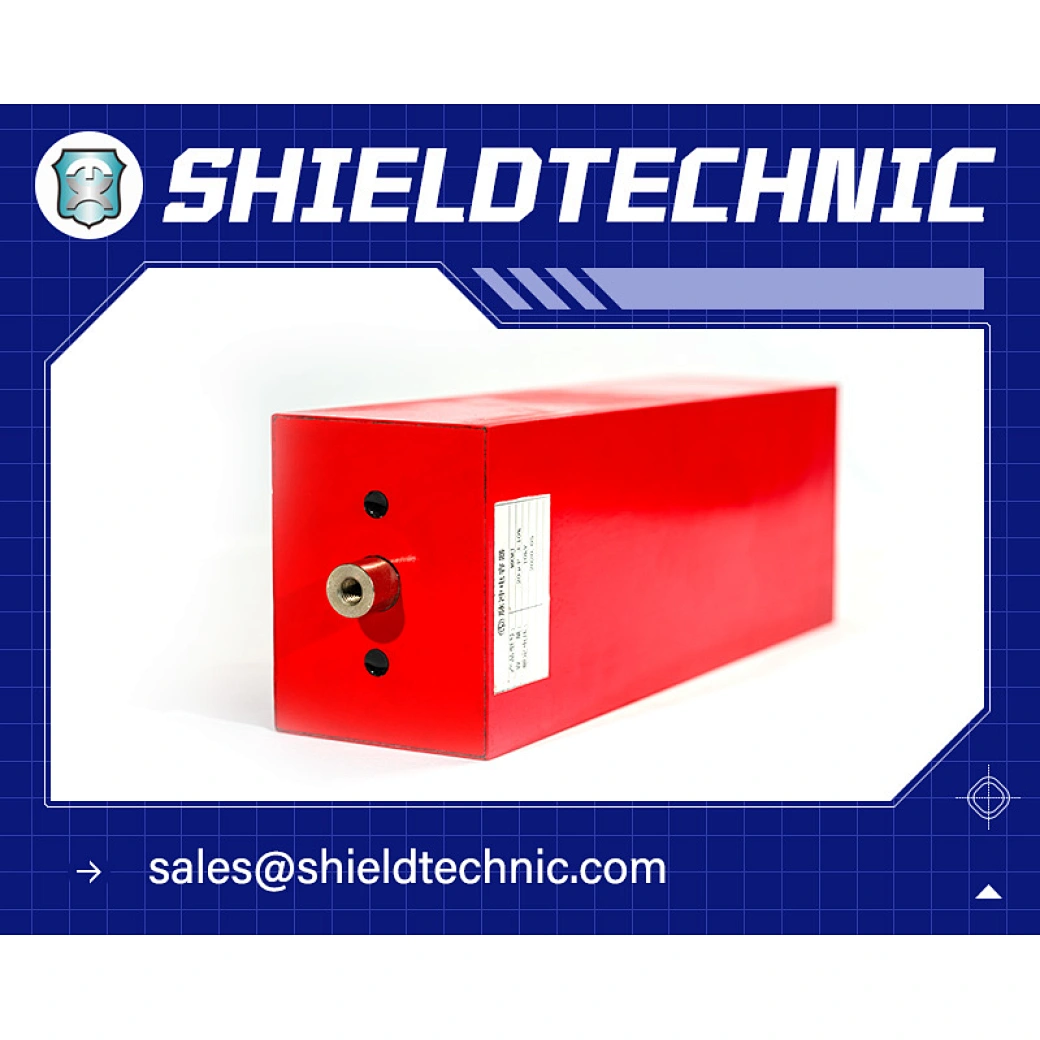

Polypropylene Film High Voltage Industrial Pulse Power Capacitor

MKMJ-2.3Kv -15µF
Delivery:
FOB Chengdu
Country of Origin:
Chengdu
General Purpose, AC / Motor, Power, Lighting, Air Conditioner, High Voltage, Fan, Automobile
High Frequency Coupling, Tuning, Filter, Low Frequency Bypass, High Frequency Bypass
Quantity:
Contact Now
add to cart


Product Feature
  • Applying imported and domestic metallized film.
  • Metallic, non-metallic package,non-inductive winding.
  • Dry-sealed stracture, excellent moisture reisitance,safe and reliable.
  • Reliable performance and good self-healing property.
  • Remark: the installation, capacitance,service life, energy density, dimensions are customizable.
Applications
  • High-voltage generator. Equipement with high efficiency intense current, short-duration pulse, transiant physical course.
  • Pulse equipment for electic discharge machines, stone breakers, flashlights and so on.
Typical Schematic
High Voltage Capacitor,Polypropylene Film Capacitor,Industrial Pulse Capacitor,Electronic ComponentPulse Capacitor,metallized film capacitor, capacitor for high voltage generator, capacitor for electic discharge mahines, capacitor for stone breaker. Capacitor for flashlight, capacitor for trasient physical course.

Technical Characteristics
Chinese Chinese DC-Link Capacitor,Power Capacitor,High Voltage Capacitor,,Polypropylene Capacitor,Polypropylene Film Capacitor, DC link capacitor for Wind Inverter, DC link capacitor for wind inverter, DC link capacitor for PV inverter, DC link capacitor for power supply.
Capacitance1μF~1000μFTest Voltage terminal to terminal1.0 UR ~1.3 UR
Capacitance Tolerance0~+5%Test Voltage terminal to case1.1 UR ~1.5 UR
Rated Voltage2kVDC~10kVDCReference StandardJB/T 8168-1999
Operating Temperature-20ºC~+55ºCShellStainless steel shell, Aluminum shell, Insulation shell
ExtractionBolt or nutEncapsulationDry-sealed structure, epoxy sealing
Max Altitude2000mFlame ResistanceUL94V-0
Remark: The influence of the altitude on the convection cooling and external insulation should be considered if the altitude is above 2000m.

Specifications
Chinese Chinese DC-Link Capacitor,Power Capacitor,High Voltage Capacitor,,Polypropylene Capacitor,Polypropylene Film Capacitor, DC link capacitor for Wind Inverter, DC link capacitor for wind inverter, DC link capacitor for PV inverter, DC link capacitor for power supply.
ItermRated Voltage(kV)Capacitance
(μF)		Peak Current(kA)Service lifetime(ΔC/C≤5%)Dimensions
12.31152300050×50×117
22.5641300040×40×112
3310010100000115×95×270
43.820351000000125×63×200
554007400000435×75×340
6102007100000195×185×270
Remark: All parameters are customizable.

Product Descrption
High Voltage Capacitor，Capacitor，Polypropylene Film Capacitor，Industrial Pulse Capacitor，Power Capacitor，Electronic Component，Pulse Capacitor，Film Capacitor，Polypropylene Capacitor，Super Capacitor.


Factory Profile

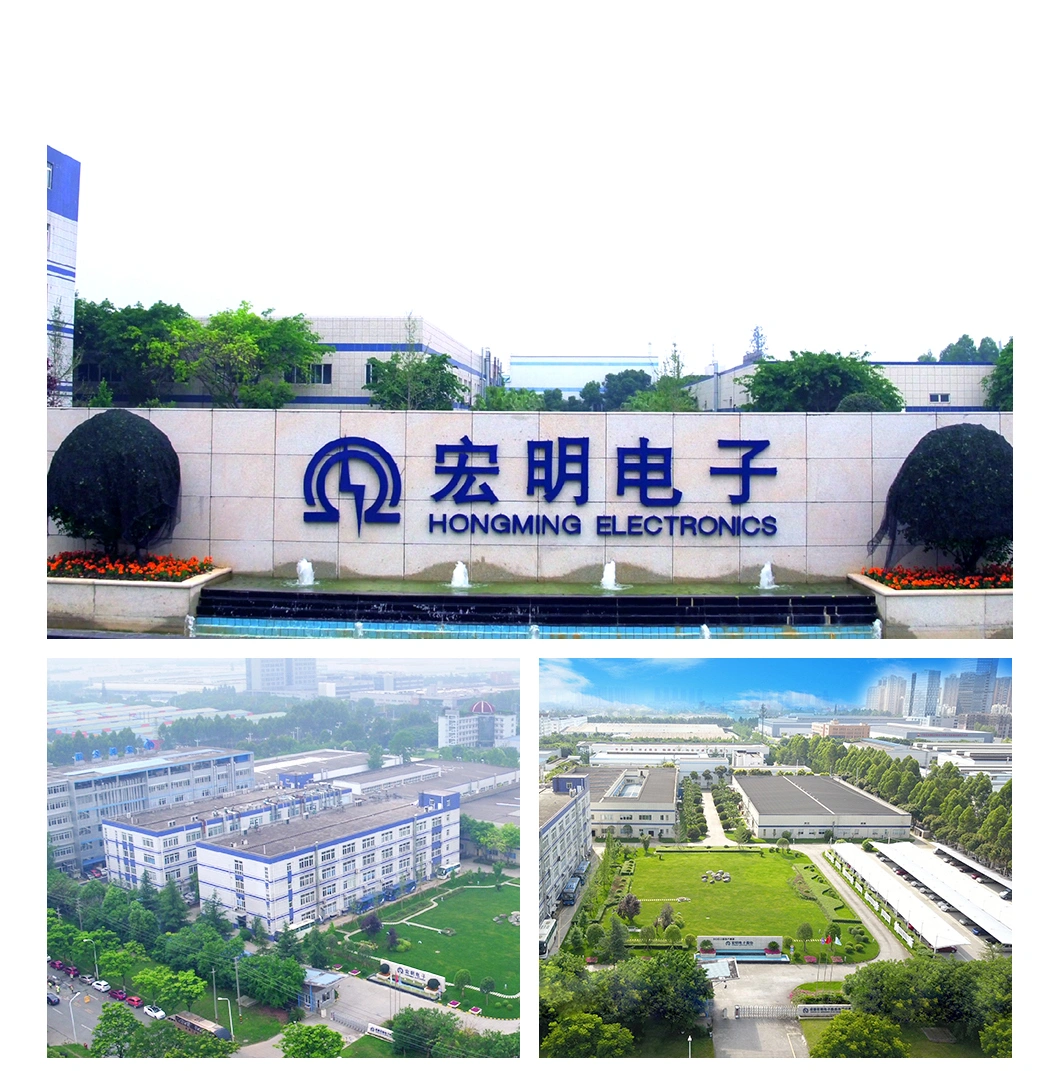

 Chengdu Shieldtechnic Co., Ltd. Is the exclusive overseas sales department of Chengdu Hongming Electronics Co., Ltd.. Hongming Electronics is a comprehensive enterprise specialized in researching and producing new electronic parts and components. It was established in 1958 and has been one of the Top 100 Electronic Component Enterprises in China for the past 20 years.

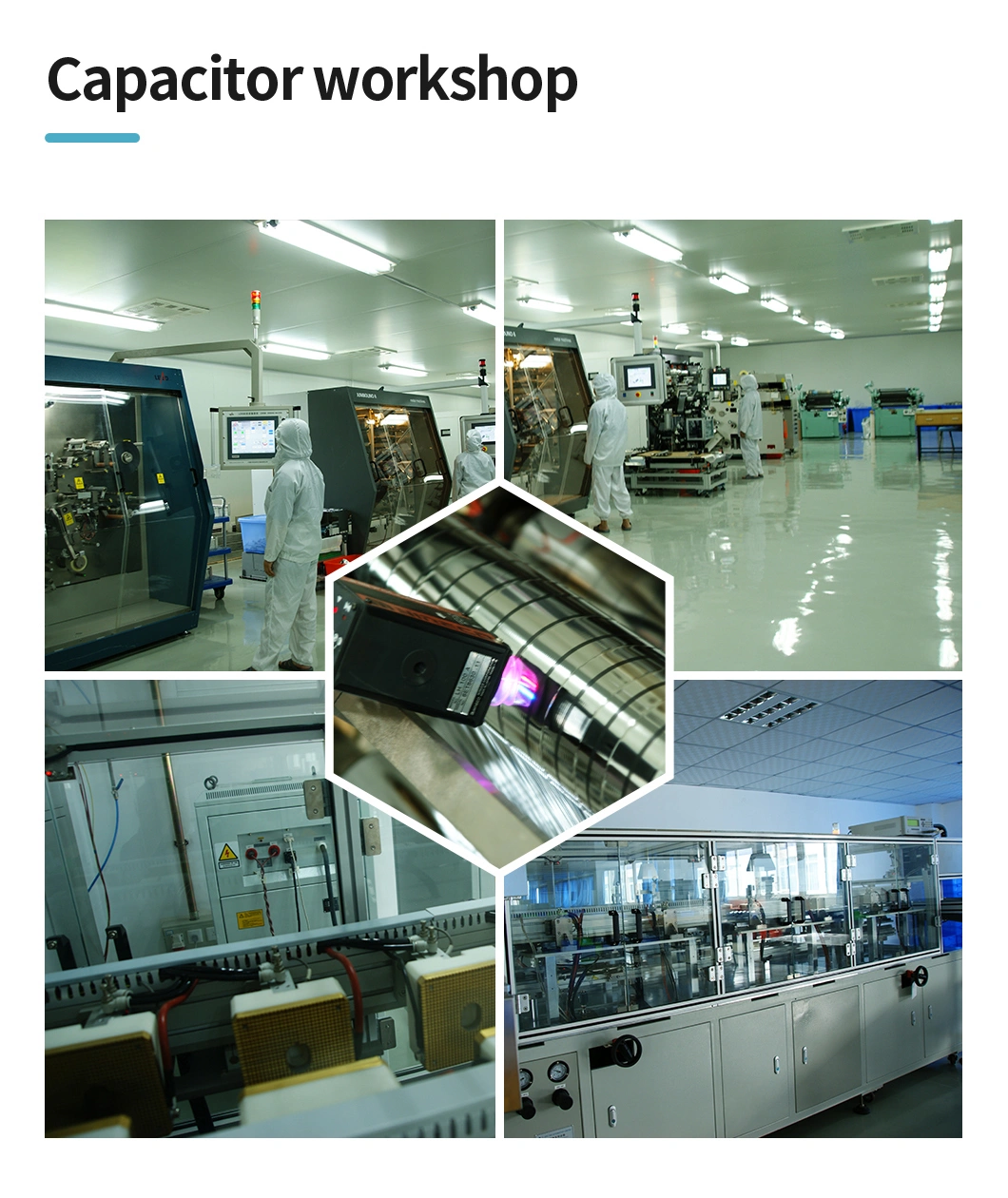

Hongming owns a national technology center, a national testing and calibration laboratory,  2 manufacturing sites, and 8 specialized institutes. Hongming also possesses quality system certificates of ISO9001 and ISO9002. Currently, there are 2000 employees in Hongming.  The products cover a range of polypropylene film capacitor, non-contacting angular displacement sensor EMI filter, position sensor, and so on.
