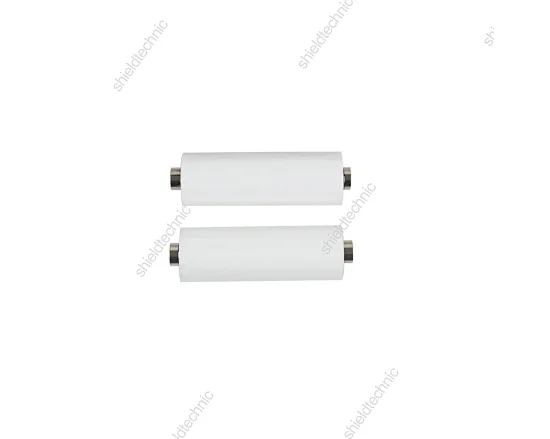

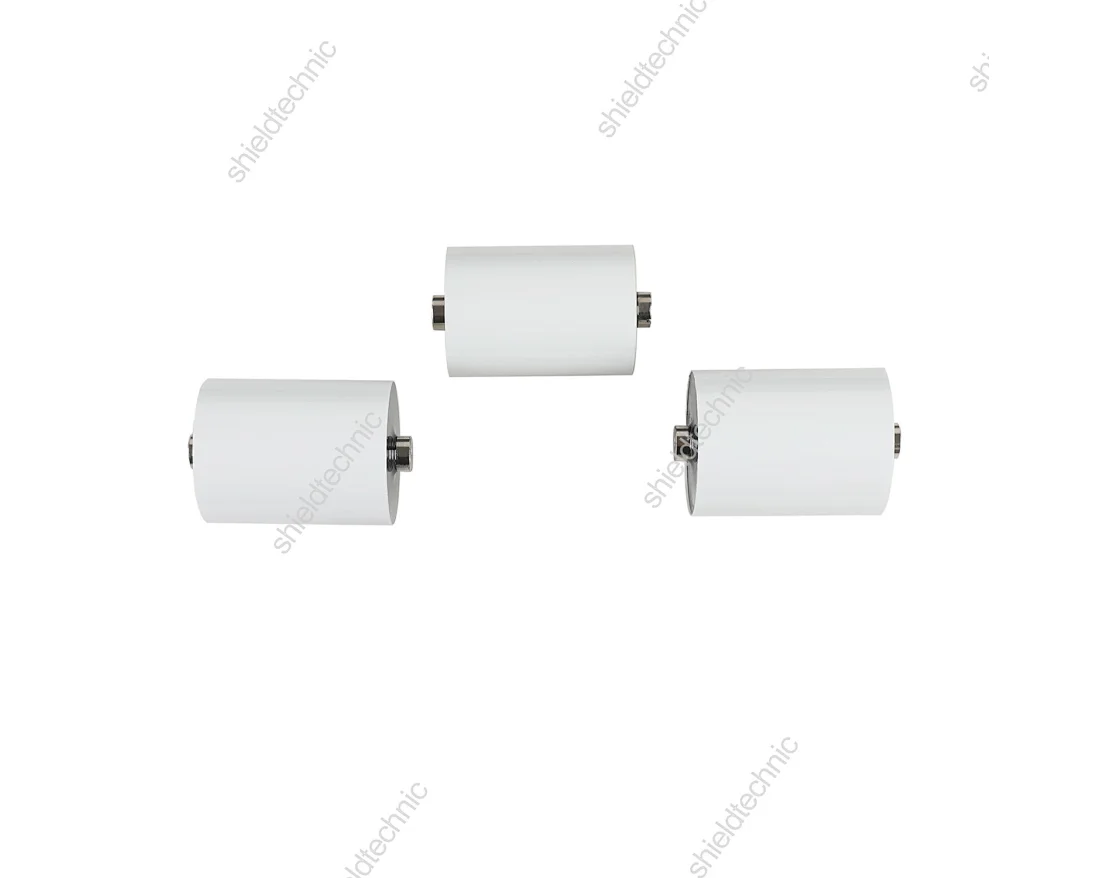

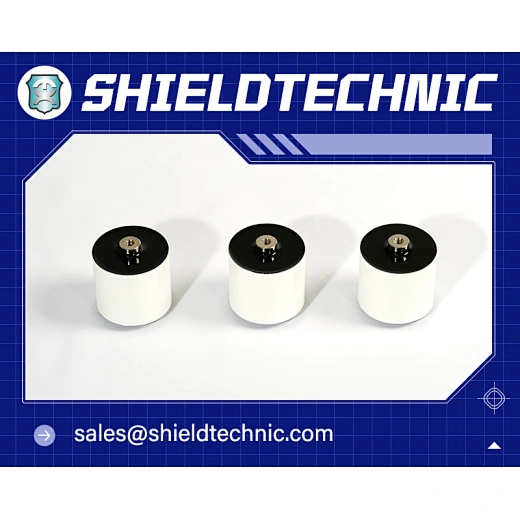

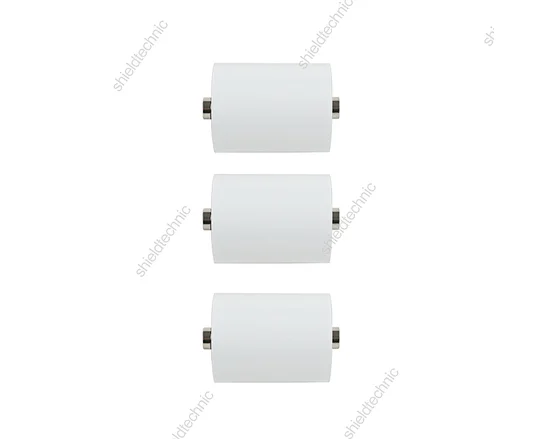

1100V 580UF Polypropylene Film High Voltage DC Link DC Filter Power Capacitor

Model NO.
APKMJ-1100V-580uF
Delivery:
FOB Chengdu
Country of Origin:
Chengdu
Quantity:
Product Feature
  • Plastic shell, epoxy coated,bolt and nut output
  • Dry sealed structure. Long service life. Good self-healing properties.
  • Ultrathin dielectric material,  temperature resistance up to 105℃。
  • Low ESR, Low ESL.
  • An alternative of electrolytic capacitor in smoothing circuit.

Application
  • Smoothing and filtering the output voltage from the rectifier in the inverse circuit
  • Absorbing the high ripple current which the inverter claims from the dc-link and high-power switching power supply.
  • Avoiding the high ripple current during the impedance of the dc-link.
  • Avoiding the influence of the volatage over shoot and over voltage of dc-link on the IGBT.

Typical Schematic

Power Capacitor, DC Link Capacitor, Polypropylene Film Capacitor,High Voltage Capacitor,capacitor with Low ESR and ESL, DC-LINK capacitor for power supply, dry type metallized film dc-link capacitor, DC-link capacitor in the inverse circle.

Technical Characteristics
RatedVoltage400VDC~ 1500VDCCapacitance Range100~2000u
Loss Angletgσ≤0.002(100Hz)Withstand Voltage1.5UR
Rated Currentdv/dt12V/μsInsulation resistanceRs≥15000S(100VDC)
EncapsulationDry type, filled with epoxyShellAluminum and PPS shell
Max Altitude2000mFlame ResistanceUL94V-0
PermissibilityS2Service life time10000 h
Reference StandardGB/T17702-2013,IEC61071
Remark: The influence of the altitude on the convectional cooling and external insulation should be considered if the altitude is above 2000m.

Specifications
UN(Vdc)CN(μF)ΦD(mm)H(mm)ESR@1kHzUN(Vdc)CN(μF)ΦD(mm)H(mm)ESR@1 kHz
(mΩ)(mΩ)
60042086950.980033086951
850861551.2640861551.3
55096950.842096950.9
800961200.9600961201
1250961741.2960961741.2
1700962251.31300962251.35
2150962751.41650962751.5
820116950.7640116950.8
32001162751.225001162751.3
90025086951.1110020586951.2
590861741.5480861741.6
1000862751.9820862752
3209695126096951.1
470961201.1380961201.2
1300962751.61050962751.8
490116950.9400116951
72011612015801161201.1
8501161361.16901161361.2
19601162751.3516001162751.4
120014086951.3130012086951.35
450862252380862252.1
570862752.3480862752.4
18096951.1515096951.25
260961201.3225961201.35
730962752620962752
270116951230116951.1
6401161741.35501161741.35
8801162251.457501162251.45
11001162751.69501162751.6
240861741.95141861741.7
330862252.2196862251.9
420962251.9250962251.65
540962752.1315962751.8
200116951.1113116951
2901161201.21731161201.2
6501162251.63801162251.4
8201162751.74771162751.55
20004486951.52000143961741.6
68861201.65200962251.75
81861361.7252962751.9
87961201.453031162251.45
104961361.53821162751.55
121961551.55

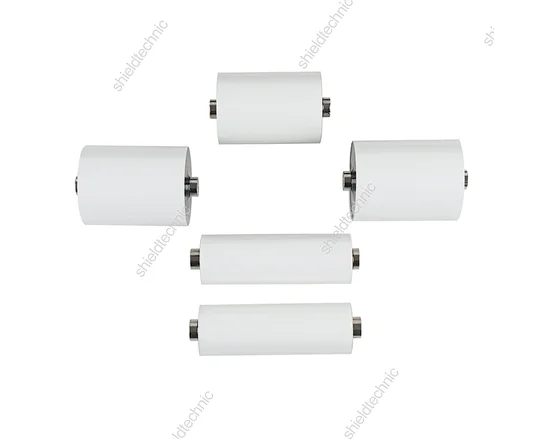

Product Description
Power Capacitor,DC Link Capacitor,Polypropylene Film Capacitor,High Voltage Capacitor,DC Filter Capacitor,Film Capacitor,Super Capacitor,Organic Filter Capacitor,AC Capacitor,Electronic Components.

Factory Profile

 Chengdu Shieldtechnic Co., Ltd. Is the exclusive overseas sales department of Chengdu Hongming Electronics Co., Ltd.. Hongming Electronics is a comprehensive enterprise specialized in researching and producing new electronic parts and components. It was established in 1958 and has been one of the Top 100 Electronic Component Enterprises/ in China for the past 20 years.

Hongming owns a national technology center, a national testing and calibration laboratory,  2 manufacturing sites, and 8 specialized institutes. Hongming also possesses quality system certificates of ISO9001 and ISO9002. Currently, there are 2000 employees in Hongming.  The products cover a range of  organic film capacitor, EMI filter, position sensor, and so on.

Power Capacitor, DC Link Capacitor, Polypropylene Film Capacitor,High Voltage Capacitor,capacitor with Low ESR and ESL, DC-LINK capacitor for power supply, dry type metallized film dc-link capacitor, DC-link capacitor in the inverse circle.



Power Capacitor, DC Link Capacitor, Polypropylene Film Capacitor,High Voltage Capacitor,capacitor with Low ESR and ESL, DC-LINK capacitor for power supply, dry type metallized film dc-link capacitor, DC-link capacitor in the inverse circle.

Power Capacitor, DC Link Capacitor, Polypropylene Film Capacitor,High Voltage Capacitor,capacitor with Low ESR and ESL, DC-LINK capacitor for power supply, dry type metallized film dc-link capacitor, DC-link capacitor in the inverse circle.

Power Capacitor, DC Link Capacitor, Polypropylene Film Capacitor,High Voltage Capacitor,capacitor with Low ESR and ESL, DC-LINK capacitor for power supply, dry type metallized film dc-link capacitor, DC-link capacitor in the inverse circle.
Product Description
Power Capacitor, DC Link Capacitor, Polypropylene Film Capacitor,High Voltage Capacitor,capacitor with Low ESR and ESL, DC-LINK capacitor for power supply, dry type metallized film dc-link capacitor, DC-link capacitor in the inverse circle.
1.Smooting and filtering the output voltage from the rectifier in the inverse circuit.
2.Absorbing the high ripple current which the inverter claims from the DC-Link and high-power switching power supply.
3.Avoiding the high ripple current during the impedance of the DC-link.
4.Avoiding the influence of voltage over shoot and over voltage of DC-Link on the IGBT.
